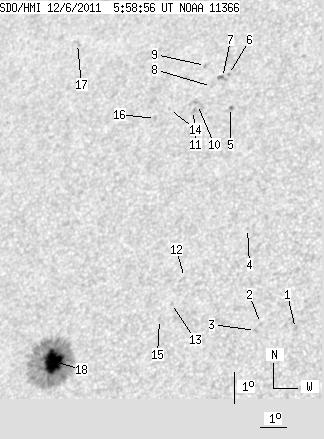

SDO HMI 2011-12-06 05:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.22 | 201.09 | 17.25 | 127.63 | 18.22 | 62.34 | -34.69 | 60.26 | 0.6263 | -806.5 | -326.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-06 05:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.96 | 0.00 | 1.14 | 18.21 | 70.38 | -26.65 | 54.08 | 0.5283 | -754.0 | -571.1 | |
| 0.00 | 0.85 | 0.00 | 0.50 | 18.36 | 69.12 | -27.91 | 54.98 | 0.5445 | -612.0 | -454.3 | |
| 0.00 | 1.45 | 0.00 | 0.86 | 18.15 | 68.99 | -28.05 | 55.45 | 0.5446 | -714.0 | -589.1 | |
| 0.00 | 0.77 | 0.00 | 0.47 | 21.35 | 68.07 | -28.96 | 51.38 | 0.5794 | -721.0 | -590.4 | |
| 0.00 | 1.37 | 0.00 | 0.87 | 25.23 | 66.48 | -30.55 | 47.40 | 0.6269 | 621.0 | 544.2 | |
| 0.00 | 1.19 | 0.00 | 0.77 | 26.31 | 66.09 | -30.94 | 46.34 | 0.6393 | -630.0 | -521.6 | |
| 0.00 | 3.33 | 0.00 | 2.14 | 26.22 | 65.89 | -31.14 | 46.63 | 0.6405 | -792.0 | -660.4 | |
| 0.00 | 0.68 | 0.00 | 0.44 | 25.92 | 65.55 | -31.48 | 47.28 | 0.6415 | 223.0 | 160.8 | |
| 0.00 | 1.62 | 0.00 | 1.06 | 26.61 | 65.11 | -31.92 | 46.77 | 0.6512 | -666.0 | -557.5 | |
| 0.00 | 6.83 | 0.00 | 4.39 | 25.33 | 65.19 | -31.84 | 48.34 | 0.6406 | -455.0 | -579.4 | |
| 0.00 | 1.96 | 0.00 | 1.26 | 25.13 | 65.09 | -31.94 | 48.67 | 0.6401 | -776.0 | -699.7 | |
| 0.00 | 0.85 | 0.00 | 0.52 | 19.80 | 66.11 | -30.92 | 55.28 | 0.5904 | -521.0 | -365.7 | |
| 0.00 | 1.19 | 0.00 | 0.73 | 18.98 | 65.81 | -31.22 | 56.73 | 0.5885 | -608.0 | -430.1 | |
| 0.00 | 0.60 | 0.00 | 0.39 | 25.16 | 64.15 | -32.88 | 49.36 | 0.6498 | -495.0 | -441.0 | |
| 0.00 | 0.94 | 0.00 | 0.57 | 18.48 | 65.47 | -31.56 | 57.74 | 0.5892 | -535.0 | -465.9 | |
| 0.00 | 1.96 | 0.00 | 1.28 | 24.87 | 63.70 | -33.33 | 50.08 | 0.6524 | -572.0 | -502.5 | |
| 0.00 | 2.73 | 0.00 | 1.91 | 27.33 | 59.68 | -37.35 | 49.77 | 0.7083 | 620.0 | 488.5 | |
| 27.22 | 170.81 | 17.25 | 108.33 | 17.17 | 61.80 | -35.23 | 62.11 | 0.6259 | -1173.0 | -312.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
