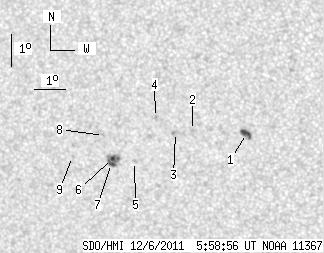

SDO HMI 2011-12-06 05:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.62 | 27.30 | 4.72 | 15.07 | -18.15 | 78.12 | -18.91 | 135.85 | 0.4431 | 118.2 | -311.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-06 05:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.63 | 6.57 | 3.05 | 3.56 | -17.72 | 81.19 | -15.84 | 139.88 | 0.4052 | 935.5 | 934.8 | |
| 0.00 | 1.19 | 0.00 | 0.65 | -17.63 | 79.45 | -17.58 | 136.84 | 0.4226 | 888.0 | 729.7 | |
| 0.00 | 2.39 | 0.00 | 1.31 | -17.69 | 78.89 | -18.14 | 136.08 | 0.4294 | 595.0 | 549.9 | |
| 0.00 | 1.28 | 0.00 | 0.70 | -17.23 | 78.29 | -18.74 | 134.37 | 0.4312 | 915.0 | 694.3 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -18.60 | 77.44 | -19.59 | 135.46 | 0.4550 | -667.0 | -482.4 | |
| 1.54 | 11.77 | 0.86 | 6.57 | -18.50 | 76.72 | -20.31 | 134.32 | 0.4620 | -1070.8 | -821.9 | |
| 1.45 | -6.00 | 0.81 | -6.00 | -18.66 | 76.67 | -20.36 | 134.51 | 0.4642 | -806.6 | 999999 | |
| 0.00 | 1.37 | 0.00 | 0.76 | -17.79 | 76.51 | -20.52 | 132.85 | 0.4571 | -992.0 | -740.7 | |
| 0.00 | 1.19 | 0.00 | 0.67 | -18.44 | 75.40 | -21.64 | 132.49 | 0.4763 | -751.0 | -562.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
