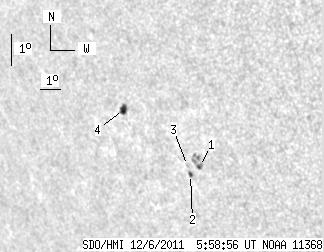

SDO HMI 2011-12-06 05:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.02 | 17.49 | 6.58 | 14.12 | -16.12 | 46.86 | -50.17 | 110.83 | 0.7916 | -133.6 | 456.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-06 05:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.28 | 8.87 | 1.01 | 7.02 | -16.68 | 47.99 | -49.04 | 111.83 | 0.7816 | 680.0 | 581.7 | |
| 1.79 | 2.05 | 1.43 | 1.64 | -16.93 | 47.48 | -49.56 | 111.99 | 0.7875 | 460.5 | 455.0 | |
| 0.00 | 0.85 | 0.00 | 0.68 | -16.65 | 47.43 | -49.60 | 111.63 | 0.7872 | 247.0 | 247.4 | |
| 4.95 | 5.72 | 4.14 | 4.78 | -14.94 | 44.90 | -52.13 | 108.85 | 0.8082 | -629.3 | -498.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
