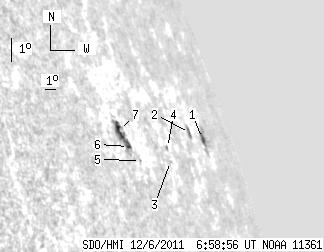

SDO HMI 2011-12-06 06:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.55 | 40.70 | 24.53 | 83.49 | 18.92 | 171.63 | 75.14 | 289.52 | 0.9683 | 78.0 | 88.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-06 06:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.33 | 12.46 | 9.36 | 36.01 | 18.83 | 175.91 | 79.43 | 289.09 | 0.9854 | -246.8 | 56.8 | |
| 1.37 | 4.18 | 3.31 | 10.13 | 19.03 | 174.15 | 77.67 | 289.39 | 0.9800 | -161.2 | -43.3 | |
| 0.00 | 0.43 | 0.00 | 0.80 | 18.13 | 170.47 | 73.98 | 288.75 | 0.9658 | -323.0 | -274.4 | |
| 0.00 | 1.62 | 0.00 | 3.07 | 18.57 | 170.64 | 74.15 | 289.18 | 0.9667 | -329.0 | -228.5 | |
| 0.00 | 0.94 | 0.00 | 1.49 | 18.17 | 167.37 | 70.88 | 289.08 | 0.9513 | 161.0 | 148.7 | |
| 0.68 | 21.07 | 1.05 | 31.99 | 18.61 | 166.65 | 70.17 | 289.61 | 0.9478 | 352.0 | 231.9 | |
| 7.17 | -6.00 | 10.81 | -6.00 | 19.11 | 166.30 | 69.81 | 290.18 | 0.9463 | 473.0 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
