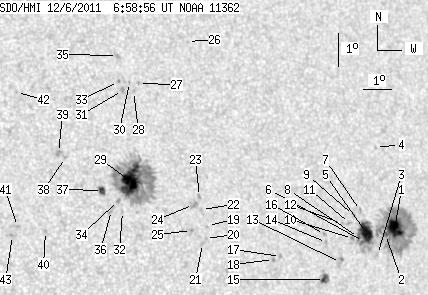

SDO HMI 2011-12-06 06:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 73.03 | 377.95 | 44.71 | 232.25 | 7.43 | 131.78 | 35.30 | 282.68 | 0.5878 | -2.7 | -57.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-06 06:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.10 | 128.41 | 9.83 | 83.64 | 6.79 | 136.50 | 40.01 | 280.19 | 0.6510 | -1025.2 | -254.2 | |
| 1.71 | -1.00 | 1.10 | -1.00 | 6.61 | 136.13 | 39.64 | 280.00 | 0.6459 | -850.4 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.55 | 6.02 | 135.77 | 39.28 | 279.15 | 0.6401 | -115.0 | -74.4 | |
| 0.00 | 0.43 | 0.00 | 0.28 | 9.20 | 136.04 | 39.55 | 283.99 | 0.6502 | 518.0 | 398.6 | |
| 14.85 | 39.25 | 9.51 | 25.12 | 6.67 | 135.40 | 38.92 | 280.24 | 0.6364 | -996.1 | -566.8 | |
| 1.28 | -5.00 | 0.82 | -5.00 | 6.40 | 135.26 | 38.78 | 279.85 | 0.6340 | -806.0 | 999999 | |
| 0.00 | 1.62 | 0.00 | 1.04 | 7.33 | 135.24 | 38.75 | 281.30 | 0.6354 | -597.0 | -504.3 | |
| 0.51 | -5.00 | 0.33 | -5.00 | 6.52 | 135.08 | 38.60 | 280.08 | 0.6318 | -991.8 | 999999 | |
| 0.00 | 1.19 | 0.00 | 0.76 | 7.18 | 134.96 | 38.47 | 281.14 | 0.6314 | -692.0 | -633.0 | |
| 0.00 | 1.79 | 0.00 | 1.14 | 6.49 | 134.85 | 38.37 | 280.08 | 0.6287 | -911.0 | -843.7 | |
| 0.00 | 1.71 | 0.00 | 1.08 | 6.94 | 134.78 | 38.29 | 280.80 | 0.6286 | -833.0 | -682.2 | |
| 0.00 | 1.19 | 0.00 | 0.76 | 6.94 | 134.48 | 37.99 | 280.87 | 0.6245 | -348.0 | -448.4 | |
| 0.00 | 3.41 | 0.00 | 2.15 | 5.78 | 134.34 | 37.85 | 279.05 | 0.6205 | -743.0 | -750.4 | |
| 0.00 | 1.62 | 0.00 | 1.02 | 6.38 | 133.86 | 37.37 | 280.11 | 0.6151 | -924.0 | -737.9 | |
| 3.92 | 7.25 | 2.45 | 4.53 | 5.28 | 133.70 | 37.21 | 278.36 | 0.6110 | 585.3 | 302.1 | |
| 0.00 | 1.19 | 0.00 | 0.75 | 6.62 | 133.81 | 37.32 | 280.51 | 0.6148 | -742.0 | -625.6 | |
| 0.00 | 1.62 | 0.00 | 0.99 | 5.97 | 132.12 | 35.64 | 279.82 | 0.5904 | -815.0 | -673.3 | |
| 0.00 | 1.28 | 0.00 | 0.78 | 5.88 | 131.86 | 35.37 | 279.73 | 0.5865 | -795.0 | -658.6 | |
| 0.00 | 0.43 | 0.00 | 0.25 | 6.89 | 129.56 | 33.07 | 282.12 | 0.5563 | -629.0 | -594.6 | |
| 0.00 | 0.68 | 0.00 | 0.41 | 6.51 | 129.46 | 32.97 | 281.46 | 0.5539 | -557.0 | -524.6 | |
| 0.00 | 2.56 | 0.00 | 1.52 | 6.36 | 129.34 | 32.86 | 281.23 | 0.5519 | -778.0 | -575.5 | |
| 0.00 | 1.19 | 0.00 | 0.71 | 7.37 | 129.38 | 32.90 | 283.02 | 0.5551 | -792.0 | -550.9 | |
| 0.00 | 1.88 | 0.00 | 1.12 | 7.76 | 129.35 | 32.86 | 283.72 | 0.5556 | -681.0 | -539.9 | |
| 0.00 | 4.78 | 0.00 | 2.83 | 7.52 | 129.11 | 32.63 | 283.38 | 0.5516 | -637.0 | -712.8 | |
| 0.00 | 1.54 | 0.00 | 0.91 | 6.74 | 128.98 | 32.49 | 282.03 | 0.5477 | -912.0 | -741.8 | |
| 0.00 | 1.11 | 0.00 | 0.67 | 12.41 | 129.46 | 32.97 | 291.67 | 0.5741 | -554.0 | -432.0 | |
| 0.00 | 1.11 | 0.00 | 0.65 | 11.14 | 127.54 | 31.06 | 290.53 | 0.5426 | 569.0 | 498.1 | |
| 0.00 | 1.02 | 0.00 | 0.60 | 10.90 | 127.34 | 30.85 | 290.21 | 0.5388 | 582.0 | 540.9 | |
| 32.08 | 141.89 | 18.61 | 82.49 | 8.21 | 126.96 | 30.48 | 285.47 | 0.5230 | 1085.3 | 280.1 | |
| 0.00 | 1.11 | 0.00 | 0.65 | 11.17 | 127.23 | 30.74 | 290.75 | 0.5385 | 656.0 | 540.0 | |
| 0.00 | 2.99 | 0.00 | 1.75 | 10.93 | 126.96 | 30.47 | 290.48 | 0.5336 | 852.0 | 739.7 | |
| 0.00 | 0.94 | 0.00 | 0.54 | 7.32 | 126.62 | 30.13 | 283.93 | 0.5150 | 609.0 | 574.1 | |
| 0.00 | 1.19 | 0.00 | 0.70 | 11.20 | 126.85 | 30.36 | 291.02 | 0.5333 | 848.0 | 739.3 | |
| 0.00 | 1.88 | 0.00 | 1.08 | 7.64 | 126.50 | 30.02 | 284.60 | 0.5144 | 890.0 | 741.8 | |
| 0.00 | 2.56 | 0.00 | 1.50 | 11.99 | 126.91 | 30.42 | 292.38 | 0.5378 | 568.0 | 518.7 | |
| 0.00 | 2.90 | 0.00 | 1.67 | 7.35 | 126.24 | 29.75 | 284.14 | 0.5096 | 773.0 | 645.2 | |
| 3.58 | 4.86 | 2.06 | 2.79 | 7.94 | 125.98 | 29.49 | 285.40 | 0.5078 | 1043.1 | 872.5 | |
| 0.00 | 1.19 | 0.00 | 0.68 | 8.93 | 124.79 | 28.31 | 287.90 | 0.4943 | 808.0 | 625.2 | |
| 0.00 | 3.41 | 0.00 | 1.94 | 9.08 | 124.57 | 28.08 | 288.32 | 0.4917 | 833.0 | 694.3 | |
| 0.00 | 1.11 | 0.00 | 0.62 | 6.72 | 123.96 | 27.47 | 283.88 | 0.4739 | 600.0 | 514.9 | |
| 0.00 | 1.19 | 0.00 | 0.67 | 6.88 | 123.03 | 26.54 | 284.62 | 0.4605 | 872.0 | 694.1 | |
| 0.00 | 0.85 | 0.00 | 0.48 | 10.88 | 123.31 | 26.83 | 292.64 | 0.4822 | 664.0 | 526.6 | |
| 0.00 | 0.77 | 0.00 | 0.43 | 6.61 | 122.85 | 26.36 | 284.14 | 0.4568 | 883.0 | 750.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
