SDO HMI 2011-12-06 06:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.98 | 23.37 | 5.46 | 12.87 | -18.15 | 78.08 | -18.41 | 136.62 | 0.4376 | -135.8 | -394.7 | |
|
previous
or next observation for the same group /

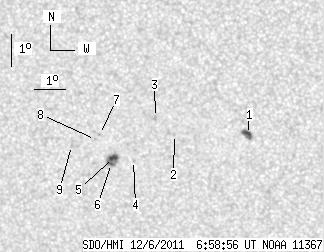

back to the solar disc SDO HMI 2011-12-06 06:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.72 | 6.40 | 3.09 | 3.45 | -17.75 | 81.25 | -15.23 | 141.00 | 0.3994 | 988.6 | 799.6 | |
| 0.00 | 0.85 | 0.00 | 0.47 | -17.76 | 78.89 | -17.59 | 137.03 | 0.4242 | 857.0 | 673.8 | |
| 0.00 | 1.28 | 0.00 | 0.70 | -17.23 | 78.33 | -18.16 | 135.25 | 0.4246 | 889.0 | 720.9 | |
| 0.00 | 1.02 | 0.00 | 0.57 | -18.57 | 77.46 | -19.03 | 136.22 | 0.4485 | -667.0 | -518.2 | |
| 3.75 | 10.92 | 2.09 | 6.07 | -18.48 | 76.81 | -19.68 | 135.14 | 0.4546 | -1075.5 | -737.5 | |
| 0.51 | -5.00 | 0.28 | -5.00 | -18.67 | 76.72 | -19.77 | 135.32 | 0.4576 | -813.8 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.52 | -17.76 | 76.43 | -20.05 | 133.42 | 0.4515 | -973.0 | -785.4 | |
| 0.00 | 0.94 | 0.00 | 0.52 | -17.92 | 76.28 | -20.20 | 133.48 | 0.4548 | -657.0 | -440.5 | |
| 0.00 | 1.02 | 0.00 | 0.57 | -18.11 | 75.46 | -21.02 | 132.71 | 0.4660 | -907.0 | -661.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
