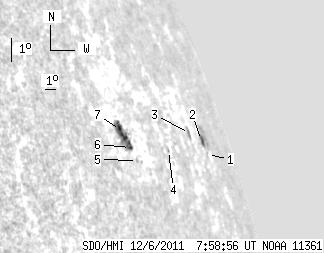

SDO HMI 2011-12-06 07:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.98 | 39.92 | 18.85 | 83.74 | 18.90 | 171.34 | 75.40 | 289.50 | 0.9692 | 135.4 | 131.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-06 07:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 4.38 | 18.36 | 176.07 | 80.13 | 288.58 | 0.9872 | -158.0 | -148.9 | |
| 2.39 | 10.49 | 7.07 | 32.33 | 18.80 | 175.82 | 79.88 | 289.04 | 0.9866 | -239.9 | 153.7 | |
| 0.00 | 3.07 | 0.00 | 7.83 | 19.02 | 174.20 | 78.26 | 289.36 | 0.9819 | -202.0 | -100.0 | |
| 0.00 | 1.19 | 0.00 | 2.35 | 18.50 | 170.59 | 74.65 | 289.08 | 0.9688 | -256.0 | -237.1 | |
| 0.00 | 1.28 | 0.00 | 2.04 | 18.20 | 166.94 | 71.00 | 289.10 | 0.9519 | 191.0 | 176.8 | |
| 0.51 | 22.44 | 0.81 | 34.81 | 18.61 | 166.66 | 70.72 | 289.55 | 0.9507 | 344.2 | 272.2 | |
| 7.08 | -6.00 | 10.97 | -6.00 | 19.14 | 166.23 | 70.29 | 290.16 | 0.9488 | 449.9 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
