SDO HMI 2011-12-06 07:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.96 | 15.27 | 1.13 | 8.87 | -25.34 | 76.90 | -19.04 | 145.74 | 0.5250 | -450.2 | 56.2 | |
|
previous
or next observation for the same group /

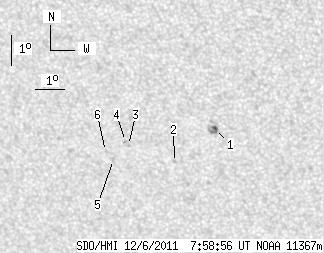

back to the solar disc SDO HMI 2011-12-06 07:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.96 | 9.30 | 1.13 | 5.35 | -25.02 | 78.13 | -17.81 | 146.99 | 0.5108 | 810.0 | 605.2 | |
| 0.00 | 1.28 | 0.00 | 0.75 | -26.14 | 76.53 | -19.41 | 146.11 | 0.5372 | -780.0 | -644.8 | |
| 0.00 | 1.02 | 0.00 | 0.60 | -25.58 | 75.02 | -20.92 | 143.51 | 0.5437 | -923.0 | -785.4 | |
| 0.00 | 1.11 | 0.00 | 0.65 | -25.45 | 74.94 | -21.00 | 143.25 | 0.5430 | -735.0 | -598.3 | |
| 0.00 | 1.71 | 0.00 | 1.01 | -26.04 | 74.41 | -21.53 | 143.31 | 0.5542 | -627.0 | -539.2 | |
| 0.00 | 0.85 | 0.00 | 0.51 | -25.78 | 74.17 | -21.77 | 142.71 | 0.5534 | -610.0 | -444.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
