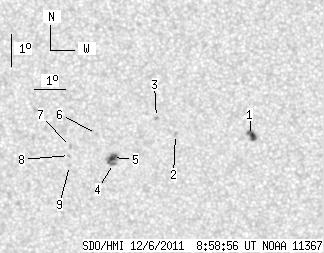

SDO HMI 2011-12-06 08:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.24 | 23.80 | 5.56 | 13.03 | -18.15 | 77.99 | -17.41 | 138.21 | 0.4269 | -165.1 | -281.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-06 08:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.63 | 6.57 | 3.02 | 3.53 | -17.79 | 81.35 | -14.05 | 143.25 | 0.3880 | 929.0 | 808.9 | |
| 0.00 | 1.54 | 0.00 | 0.83 | -17.76 | 78.90 | -16.49 | 138.82 | 0.4123 | 852.0 | 682.1 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -17.24 | 78.34 | -17.06 | 136.98 | 0.4124 | 865.0 | 670.7 | |
| 0.26 | 9.30 | 0.14 | 5.13 | -18.67 | 76.79 | -18.61 | 136.98 | 0.4450 | -849.3 | -743.6 | |
| 4.35 | -4.00 | 2.40 | -4.00 | -18.48 | 76.78 | -18.62 | 136.66 | 0.4431 | -1006.4 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.56 | -17.74 | 76.33 | -19.06 | 134.76 | 0.4400 | -797.0 | -633.0 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -18.14 | 75.43 | -19.97 | 134.17 | 0.4543 | -911.0 | -681.4 | |
| 0.00 | 1.11 | 0.00 | 0.62 | -18.42 | 75.36 | -20.03 | 134.54 | 0.4579 | -702.0 | -632.5 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -18.74 | 75.32 | -20.07 | 135.00 | 0.4616 | -803.0 | -502.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
