SDO HMI 2011-12-06 09:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.09 | 15.35 | 2.34 | 8.96 | -25.81 | 75.95 | -18.90 | 146.48 | 0.5290 | -295.7 | -405.4 | |
|
previous
or next observation for the same group /

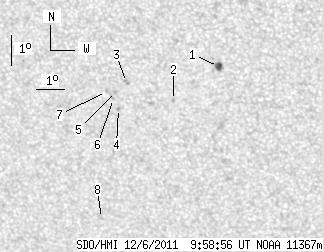

back to the solar disc SDO HMI 2011-12-06 09:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.09 | 5.72 | 2.34 | 3.27 | -24.99 | 78.18 | -16.68 | 148.60 | 0.5012 | 866.4 | 606.2 | |
| 0.00 | 1.19 | 0.00 | 0.70 | -26.11 | 76.46 | -18.39 | 147.44 | 0.5285 | -678.0 | -461.7 | |
| 0.00 | 2.64 | 0.00 | 1.55 | -25.52 | 74.93 | -19.93 | 144.70 | 0.5343 | -784.0 | -680.1 | |
| 0.00 | 1.54 | 0.00 | 0.91 | -26.38 | 74.49 | -20.36 | 145.16 | 0.5477 | -671.0 | -549.4 | |
| 0.00 | 1.28 | 0.00 | 0.75 | -25.82 | 74.49 | -20.36 | 144.49 | 0.5414 | -766.0 | -635.4 | |
| 0.00 | 0.77 | 0.00 | 0.45 | -26.05 | 74.38 | -20.47 | 144.63 | 0.5450 | -589.0 | -491.8 | |
| 0.00 | 1.36 | 0.00 | 0.80 | -25.82 | 74.17 | -20.68 | 144.09 | 0.5442 | -651.0 | -540.2 | |
| 0.00 | 0.85 | 0.00 | 0.53 | -30.08 | 73.11 | -21.74 | 147.58 | 0.6000 | -650.0 | -446.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
