SDO HMI 2011-12-06 11:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.60 | 16.81 | 3.57 | 12.76 | -15.82 | 46.52 | -47.23 | 111.32 | 0.7603 | -25.2 | 220.7 | |
|
previous
or next observation for the same group /

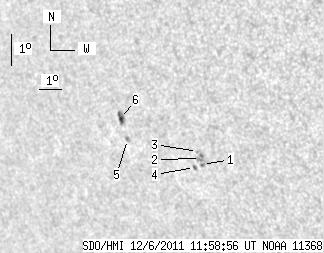

back to the solar disc SDO HMI 2011-12-06 11:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.62 | 0.00 | 1.20 | -16.46 | 48.18 | -45.58 | 112.66 | 0.7446 | 671.0 | 669.0 | |
| 0.00 | 4.61 | 0.00 | 3.40 | -16.27 | 48.14 | -45.61 | 112.41 | 0.7444 | 728.0 | 659.0 | |
| 0.00 | 0.68 | 0.00 | 0.50 | -16.06 | 48.08 | -45.68 | 112.11 | 0.7445 | 614.0 | 537.0 | |
| 0.68 | 1.88 | 0.51 | 1.40 | -16.55 | 47.79 | -45.96 | 112.65 | 0.7491 | 442.1 | 399.7 | |
| 0.00 | 2.56 | 0.00 | 2.00 | -15.70 | 45.01 | -48.75 | 110.68 | 0.7759 | -662.0 | -462.1 | |
| 3.92 | 5.46 | 3.06 | 4.26 | -15.06 | 44.88 | -48.87 | 109.83 | 0.7756 | -577.5 | -599.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
