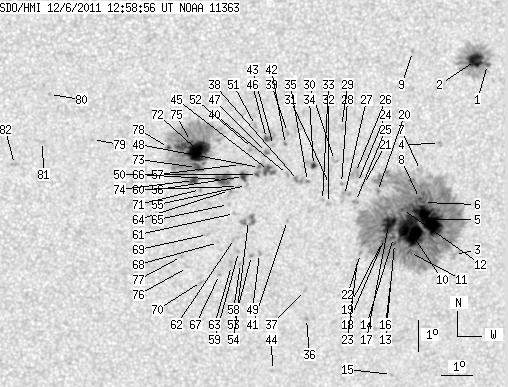

SDO HMI 2011-12-06 12:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 209.20 | 1119.12 | 115.50 | 618.31 | -21.90 | 107.59 | 14.38 | 211.11 | 0.4452 | 232.1 | 137.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-06 12:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.71 | 86.04 | 0.93 | 46.97 | -17.75 | 111.26 | 18.05 | 223.73 | 0.4287 | 632.7 | 451.1 | |
| 14.16 | -1.00 | 7.73 | -1.00 | -17.62 | 110.85 | 17.65 | 223.32 | 0.4229 | 1287.5 | 999999 | |
| 0.00 | 4.69 | 0.00 | 2.67 | -23.76 | 110.90 | 17.69 | 214.38 | 0.4945 | 61.0 | -77.6 | |
| 0.00 | 2.30 | 0.00 | 1.27 | -20.22 | 109.95 | 16.74 | 217.75 | 0.4435 | -801.0 | -621.0 | |
| 47.24 | 662.08 | 26.51 | 370.76 | -22.63 | 109.87 | 16.67 | 214.28 | 0.4720 | 1334.5 | 425.9 | |
| 0.94 | -5.00 | 0.52 | -5.00 | -22.09 | 109.64 | 16.43 | 214.63 | 0.4632 | 1256.9 | 999999 | |
| 0.00 | 2.81 | 0.00 | 1.56 | -21.07 | 109.42 | 16.21 | 215.67 | 0.4488 | 370.0 | 322.1 | |
| 1.11 | -5.00 | 0.62 | -5.00 | -21.96 | 109.49 | 16.28 | 214.56 | 0.4604 | 1368.5 | 999999 | |
| 0.00 | 1.71 | 0.00 | 0.92 | -17.34 | 108.79 | 15.58 | 220.36 | 0.3977 | 994.0 | 653.7 | |
| 50.82 | -5.00 | 28.52 | -5.00 | -23.02 | 109.32 | 16.11 | 212.92 | 0.4720 | 1300.6 | 999999 | |
| 2.05 | -5.00 | 1.15 | -5.00 | -23.69 | 109.37 | 16.16 | 212.16 | 0.4809 | 623.6 | 999999 | |
| 0.85 | -5.00 | 0.48 | -5.00 | -22.31 | 108.97 | 15.76 | 213.26 | 0.4602 | 1075.3 | 999999 | |
| 0.94 | -5.00 | 0.53 | -5.00 | -23.40 | 108.83 | 15.62 | 211.67 | 0.4728 | 664.3 | 999999 | |
| 1.96 | -5.00 | 1.10 | -5.00 | -23.21 | 108.78 | 15.57 | 211.81 | 0.4699 | 861.9 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.90 | -27.70 | 109.32 | 16.11 | 207.68 | 0.5310 | 485.0 | 411.8 | |
| 0.00 | 1.53 | 0.00 | 0.87 | -24.70 | 108.86 | 15.65 | 210.19 | 0.4895 | 536.0 | 359.9 | |
| 14.92 | -5.00 | 8.33 | -5.00 | -22.79 | 108.56 | 15.35 | 211.98 | 0.4628 | 1241.6 | 999999 | |
| 1.45 | -5.00 | 0.81 | -5.00 | -23.24 | 108.48 | 15.27 | 211.29 | 0.4679 | 879.2 | 999999 | |
| 0.94 | -5.00 | 0.53 | -5.00 | -23.34 | 108.43 | 15.22 | 211.09 | 0.4687 | 854.7 | 999999 | |
| 0.00 | 2.13 | 0.00 | 1.18 | -21.73 | 108.08 | 14.87 | 212.52 | 0.4453 | 757.0 | 538.3 | |
| 0.00 | 1.79 | 0.00 | 0.99 | -21.51 | 107.60 | 14.39 | 211.98 | 0.4384 | -324.0 | -86.2 | |
| 0.00 | 1.11 | 0.00 | 0.62 | -23.72 | 107.74 | 14.53 | 209.50 | 0.4683 | 692.0 | 537.5 | |
| 0.00 | 0.85 | 0.00 | 0.48 | -23.92 | 107.66 | 14.45 | 209.15 | 0.4702 | 616.0 | 532.6 | |
| 0.00 | 0.51 | 0.00 | 0.28 | -21.45 | 107.39 | 14.19 | 211.70 | 0.4359 | 391.0 | 302.0 | |
| 0.00 | 2.30 | 0.00 | 1.27 | -22.05 | 107.39 | 14.18 | 210.92 | 0.4437 | 751.0 | 667.0 | |
| 0.00 | 7.85 | 0.00 | 4.30 | -21.13 | 107.30 | 14.09 | 211.95 | 0.4309 | -297.0 | -256.7 | |
| 0.00 | 7.67 | 0.00 | 4.22 | -21.86 | 107.01 | 13.80 | 210.49 | 0.4382 | 402.0 | 343.1 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -21.48 | 106.87 | 13.67 | 210.73 | 0.4320 | -731.0 | -566.6 | |
| 0.00 | 2.30 | 0.00 | 1.25 | -19.68 | 106.71 | 13.50 | 212.86 | 0.4069 | -429.0 | -435.3 | |
| 0.00 | 3.07 | 0.00 | 1.67 | -20.75 | 106.58 | 13.37 | 211.14 | 0.4200 | -769.0 | -613.8 | |
| 0.00 | 0.85 | 0.00 | 0.47 | -21.51 | 106.49 | 13.28 | 209.99 | 0.4293 | -634.0 | -477.9 | |
| 0.00 | 2.22 | 0.00 | 1.22 | -22.11 | 106.51 | 13.30 | 209.28 | 0.4376 | 150.0 | 140.4 | |
| 0.00 | 0.77 | 0.00 | 0.42 | -22.02 | 106.30 | 13.10 | 209.03 | 0.4348 | -751.0 | -613.7 | |
| 2.56 | 5.20 | 1.39 | 2.83 | -20.90 | 105.91 | 12.70 | 209.67 | 0.4167 | 875.5 | 442.5 | |
| 0.00 | 1.28 | 0.00 | 0.70 | -21.41 | 105.76 | 12.55 | 208.75 | 0.4224 | -701.0 | -523.8 | |
| 0.00 | 1.71 | 0.00 | 0.97 | -25.84 | 106.17 | 12.96 | 204.67 | 0.4855 | 761.0 | 606.0 | |
| 0.00 | 1.11 | 0.00 | 0.62 | -24.92 | 106.03 | 12.83 | 205.35 | 0.4722 | 660.0 | 480.2 | |
| 0.00 | 4.95 | 0.00 | 2.70 | -21.38 | 105.47 | 12.26 | 208.23 | 0.4197 | -586.0 | -572.6 | |
| 0.00 | 2.05 | 0.00 | 1.10 | -19.86 | 104.99 | 11.78 | 209.21 | 0.3952 | -768.0 | -664.0 | |
| 0.00 | 2.05 | 0.00 | 1.11 | -21.19 | 105.09 | 11.88 | 207.74 | 0.4143 | -775.0 | -554.0 | |
| 0.00 | 0.85 | 0.00 | 0.47 | -22.66 | 105.22 | 12.01 | 206.28 | 0.4355 | 575.0 | 487.7 | |
| 0.00 | 1.28 | 0.00 | 0.69 | -20.24 | 104.95 | 11.74 | 208.64 | 0.4001 | -747.0 | -606.7 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -20.27 | 104.57 | 11.36 | 207.82 | 0.3976 | -683.0 | -552.8 | |
| 0.00 | 1.19 | 0.00 | 0.68 | -27.56 | 105.21 | 12.00 | 201.57 | 0.5034 | 604.0 | 488.9 | |
| 7.85 | 16.71 | 4.25 | 9.06 | -21.06 | 104.47 | 11.26 | 206.65 | 0.4080 | -785.2 | -754.1 | |
| 2.05 | 7.85 | 1.10 | 4.22 | -20.05 | 104.33 | 11.12 | 207.60 | 0.3928 | -989.2 | -769.9 | |
| 0.00 | 3.50 | 0.00 | 1.89 | -20.49 | 104.36 | 11.15 | 207.12 | 0.3992 | -1038.0 | -822.8 | |
| 0.68 | -45.00 | 0.37 | -45.00 | -20.97 | 104.17 | 10.96 | 206.16 | 0.4045 | -1042.9 | 999999 | |
| 0.00 | 2.13 | 0.00 | 1.18 | -23.72 | 104.39 | 11.18 | 203.63 | 0.4449 | -722.0 | -609.0 | |
| 1.28 | -45.00 | 0.69 | -45.00 | -21.19 | 104.12 | 10.91 | 205.80 | 0.4073 | -835.0 | 999999 | |
| 0.00 | 1.96 | 0.00 | 1.05 | -19.64 | 103.95 | 10.74 | 207.31 | 0.3842 | -799.0 | -723.3 | |
| 0.00 | 3.84 | 0.00 | 2.07 | -20.36 | 103.90 | 10.69 | 206.32 | 0.3941 | -685.0 | -772.8 | |
| 0.00 | 1.53 | 0.00 | 0.85 | -23.78 | 104.14 | 10.93 | 203.09 | 0.4442 | -944.0 | -771.8 | |
| 0.00 | 10.57 | 0.00 | 5.79 | -22.66 | 103.94 | 10.74 | 203.85 | 0.4270 | -563.0 | -756.0 | |
| 0.00 | 2.13 | 0.00 | 1.16 | -21.54 | 103.79 | 10.59 | 204.74 | 0.4100 | -442.0 | -403.0 | |
| 4.01 | 5.71 | 2.17 | 3.09 | -21.25 | 103.68 | 10.47 | 204.82 | 0.4051 | -930.7 | -854.5 | |
| 0.00 | 2.05 | 0.00 | 1.10 | -20.87 | 103.55 | 10.34 | 204.99 | 0.3989 | -805.0 | -709.3 | |
| 0.00 | 2.05 | 0.00 | 1.13 | -24.04 | 103.80 | 10.59 | 202.21 | 0.4458 | -738.0 | -553.1 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -23.65 | 103.70 | 10.49 | 202.39 | 0.4397 | -886.0 | -764.7 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -21.57 | 103.54 | 10.33 | 204.18 | 0.4088 | -724.0 | -537.6 | |
| 0.00 | 1.62 | 0.00 | 0.88 | -22.43 | 103.47 | 10.26 | 203.15 | 0.4208 | -938.0 | -590.9 | |
| 0.00 | 2.64 | 0.00 | 1.45 | -23.23 | 103.53 | 10.32 | 202.47 | 0.4327 | -754.0 | -583.8 | |
| 0.00 | 2.81 | 0.00 | 1.55 | -24.11 | 103.51 | 10.30 | 201.60 | 0.4451 | -707.0 | -652.5 | |
| 0.00 | 2.05 | 0.00 | 1.11 | -21.70 | 103.26 | 10.05 | 203.47 | 0.4088 | -746.0 | -546.9 | |
| 0.00 | 1.02 | 0.00 | 0.56 | -22.14 | 103.26 | 10.05 | 203.01 | 0.4152 | -697.0 | -556.2 | |
| 10.74 | 15.01 | 5.81 | 8.11 | -21.35 | 103.04 | 9.83 | 203.39 | 0.4023 | -956.0 | -828.3 | |
| 0.00 | 1.53 | 0.00 | 0.85 | -24.40 | 103.13 | 9.93 | 200.64 | 0.4472 | -674.0 | -513.2 | |
| 0.00 | 0.77 | 0.00 | 0.42 | -23.36 | 103.02 | 9.81 | 201.35 | 0.4315 | -752.0 | -575.8 | |
| 0.00 | 1.53 | 0.00 | 0.84 | -23.10 | 102.64 | 9.43 | 200.84 | 0.4256 | -710.0 | -583.9 | |
| 0.00 | 1.28 | 0.00 | 0.71 | -24.63 | 102.56 | 9.35 | 199.36 | 0.4474 | -551.0 | -401.3 | |
| 0.00 | 1.62 | 0.00 | 0.88 | -21.66 | 102.32 | 9.11 | 201.54 | 0.4026 | -827.0 | -658.1 | |
| 28.65 | 194.85 | 15.36 | 104.33 | -20.46 | 102.18 | 8.97 | 202.47 | 0.3839 | -1299.7 | -570.7 | |
| 4.52 | -72.00 | 2.43 | -72.00 | -20.96 | 102.15 | 8.94 | 201.87 | 0.3912 | -830.0 | 999999 | |
| 5.12 | -72.00 | 2.76 | -72.00 | -21.38 | 102.08 | 8.87 | 201.30 | 0.3969 | -817.0 | 999999 | |
| 0.94 | -72.00 | 0.50 | -72.00 | -20.14 | 101.91 | 8.70 | 202.19 | 0.3776 | -1412.6 | 999999 | |
| 0.00 | 0.68 | 0.00 | 0.38 | -24.17 | 102.07 | 8.86 | 198.78 | 0.4382 | -717.0 | -589.9 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -23.81 | 101.85 | 8.64 | 198.64 | 0.4318 | -811.0 | -591.5 | |
| 1.71 | -72.00 | 0.91 | -72.00 | -20.33 | 101.22 | 8.01 | 200.41 | 0.3763 | -914.4 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.68 | -20.08 | 98.80 | 5.59 | 194.77 | 0.3605 | -839.0 | -652.5 | |
| 0.00 | 0.94 | 0.00 | 0.49 | -18.67 | 97.41 | 4.20 | 192.08 | 0.3327 | -835.0 | -666.0 | |
| 0.00 | 1.96 | 0.00 | 1.04 | -20.14 | 97.22 | 4.01 | 190.69 | 0.3558 | -681.0 | -624.8 | |
| 0.00 | 3.16 | 0.00 | 1.68 | -20.87 | 96.36 | 3.15 | 188.11 | 0.3652 | -798.0 | -466.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
