SDO HMI 2011-12-06 12:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.50 | 0.00 | 4.32 | -16.11 | 119.36 | 26.15 | 236.49 | 0.5110 | -738.8 | -578.3 | |
|
previous
or next observation for the same group /

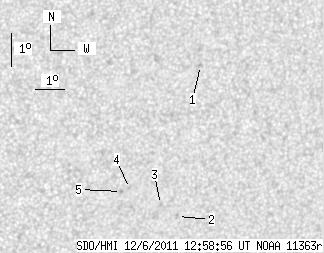

back to the solar disc SDO HMI 2011-12-06 12:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.05 | 0.00 | 1.17 | -13.01 | 120.09 | 26.88 | 242.57 | 0.4983 | -748.0 | -532.8 | |
| 0.00 | 2.13 | 0.00 | 1.24 | -17.64 | 119.94 | 26.73 | 234.44 | 0.5291 | -629.0 | -546.4 | |
| 0.00 | 1.36 | 0.00 | 0.79 | -17.27 | 119.29 | 26.09 | 234.43 | 0.5183 | -736.0 | -600.8 | |
| 0.00 | 0.77 | 0.00 | 0.44 | -16.77 | 118.16 | 24.95 | 234.14 | 0.5004 | -759.0 | -636.8 | |
| 0.00 | 1.19 | 0.00 | 0.68 | -16.86 | 117.90 | 24.69 | 233.71 | 0.4980 | -822.0 | -650.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
