SDO HMI 2011-12-06 12:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.49 | 15.43 | 2.66 | 11.58 | -15.80 | 46.67 | -46.54 | 111.52 | 0.7529 | -129.0 | 156.5 | |
|
previous
or next observation for the same group /

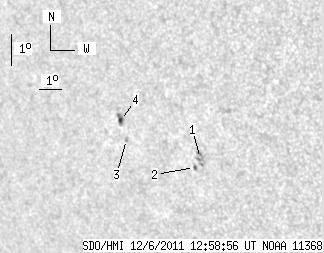

back to the solar disc SDO HMI 2011-12-06 12:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.16 | 0.00 | 5.24 | -16.24 | 48.18 | -45.03 | 112.58 | 0.7379 | 715.0 | 632.9 | |
| 1.19 | 1.36 | 0.88 | 1.00 | -16.52 | 47.84 | -45.37 | 112.82 | 0.7426 | 397.9 | 508.0 | |
| 0.00 | 1.71 | 0.00 | 1.32 | -15.67 | 45.03 | -48.18 | 110.81 | 0.7699 | -664.0 | -477.7 | |
| 2.30 | 5.20 | 1.78 | 4.02 | -15.09 | 44.94 | -48.27 | 110.04 | 0.7694 | -563.0 | -604.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
