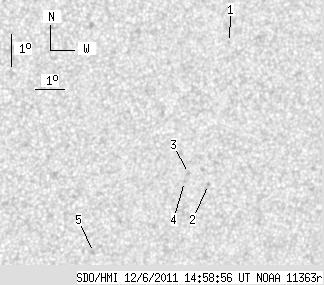

SDO HMI 2011-12-06 14:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.87 | 0.00 | 3.43 | -17.25 | 118.77 | 26.66 | 235.00 | 0.5265 | -669.2 | -530.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-06 14:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.02 | 0.00 | 0.59 | -13.19 | 120.10 | 27.99 | 243.12 | 0.5144 | -652.0 | -543.2 | |
| 0.00 | 1.02 | 0.00 | 0.60 | -17.55 | 120.01 | 27.90 | 235.66 | 0.5425 | -728.0 | -511.8 | |
| 0.00 | 1.28 | 0.00 | 0.75 | -17.20 | 119.26 | 27.15 | 235.54 | 0.5307 | -577.0 | -505.8 | |
| 0.00 | 1.02 | 0.00 | 0.60 | -17.45 | 119.16 | 27.05 | 235.04 | 0.5314 | -678.0 | -545.0 | |
| 0.00 | 1.53 | 0.00 | 0.89 | -19.66 | 116.36 | 24.26 | 228.70 | 0.5170 | -711.0 | -546.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
