SDO HMI 2011-12-06 14:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.65 | 23.36 | 3.57 | 12.63 | -18.29 | 77.31 | -14.80 | 142.88 | 0.4019 | -367.4 | -420.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-06 14:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

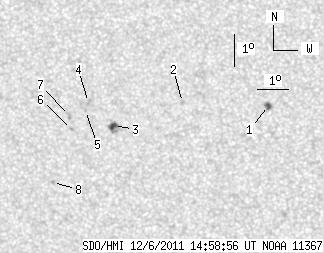

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.07 | 4.09 | 1.63 | 2.17 | -17.83 | 81.74 | -10.37 | 151.06 | 0.3556 | 943.3 | 851.8 | |
| 0.00 | 2.05 | 0.00 | 1.09 | -17.74 | 79.02 | -13.09 | 145.03 | 0.3779 | 937.0 | 609.2 | |
| 3.58 | 8.36 | 1.94 | 4.53 | -18.46 | 76.75 | -15.36 | 141.88 | 0.4087 | -1001.4 | -687.5 | |
| 0.00 | 2.30 | 0.00 | 1.25 | -17.74 | 76.01 | -16.10 | 139.42 | 0.4077 | -865.0 | -707.5 | |
| 0.00 | 1.19 | 0.00 | 0.65 | -17.99 | 75.89 | -16.22 | 139.63 | 0.4119 | -835.0 | -660.6 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -18.58 | 75.38 | -16.73 | 139.74 | 0.4241 | -770.0 | -623.0 | |
| 0.00 | 2.39 | 0.00 | 1.30 | -18.15 | 75.36 | -16.75 | 139.00 | 0.4192 | -783.0 | -654.6 | |
| 0.00 | 1.53 | 0.00 | 0.85 | -20.25 | 74.58 | -17.53 | 141.04 | 0.4515 | -795.0 | -596.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
