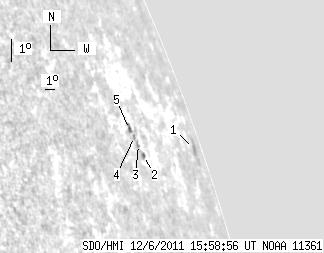

SDO HMI 2011-12-06 15:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.88 | 14.92 | 3.64 | 49.17 | 18.91 | 172.30 | 80.74 | 289.17 | 0.9860 | 274.4 | 121.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-06 15:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.88 | 0.00 | 31.37 | 18.81 | 175.76 | 84.20 | 288.88 | 0.9957 | -12.0 | 79.1 | |
| 0.00 | 2.22 | 0.00 | 4.45 | 18.61 | 166.52 | 74.96 | 289.17 | 0.9701 | 269.0 | 175.8 | |
| 0.00 | 2.05 | 0.00 | 4.05 | 18.96 | 166.35 | 74.79 | 289.54 | 0.9695 | 317.0 | 198.1 | |
| 0.00 | 1.53 | 0.00 | 3.01 | 19.21 | 166.19 | 74.63 | 289.81 | 0.9690 | 279.0 | 243.3 | |
| 1.88 | 3.24 | 3.64 | 6.29 | 19.43 | 165.88 | 74.32 | 290.07 | 0.9678 | 341.6 | 273.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
