SDO HMI 2011-12-06 15:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.45 | 159.35 | 14.67 | 85.10 | 18.73 | 103.38 | 11.82 | 328.67 | 0.3740 | -590.8 | -291.5 | |
|
previous
or next observation for the same group /

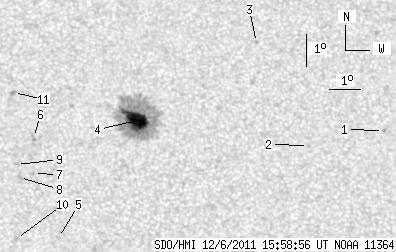

back to the solar disc SDO HMI 2011-12-06 15:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.11 | 0.00 | 0.62 | 18.52 | 111.53 | 19.97 | 314.12 | 0.4531 | -692.0 | -599.9 | |
| 0.00 | 0.94 | 0.00 | 0.51 | 18.06 | 109.02 | 17.46 | 317.05 | 0.4204 | -791.0 | -657.5 | |
| 0.00 | 1.11 | 0.00 | 0.61 | 21.29 | 107.66 | 16.10 | 324.29 | 0.4446 | 870.0 | 734.0 | |
| 27.45 | 143.14 | 14.67 | 76.52 | 18.84 | 103.55 | 11.99 | 328.38 | 0.3766 | -1323.1 | -398.9 | |
| 0.00 | 1.28 | 0.00 | 0.66 | 15.23 | 100.89 | 9.33 | 328.87 | 0.3039 | 814.0 | 615.8 | |
| 0.00 | 2.64 | 0.00 | 1.39 | 18.31 | 100.25 | 8.69 | 335.19 | 0.3436 | 769.0 | 691.6 | |
| 0.00 | 1.02 | 0.00 | 0.54 | 17.19 | 100.20 | 8.64 | 333.82 | 0.3267 | 780.0 | 591.2 | |
| 0.00 | 2.05 | 0.00 | 1.07 | 17.07 | 99.76 | 8.20 | 334.82 | 0.3217 | 816.0 | 700.8 | |
| 0.00 | 1.62 | 0.00 | 0.85 | 17.47 | 99.68 | 8.12 | 335.56 | 0.3272 | 788.0 | 661.0 | |
| 0.00 | 2.22 | 0.00 | 1.15 | 15.20 | 99.58 | 8.03 | 332.46 | 0.2928 | 664.0 | 501.1 | |
| 0.00 | 2.22 | 0.00 | 1.18 | 19.71 | 99.69 | 8.13 | 338.24 | 0.3609 | 818.0 | 699.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
