SDO HMI 2011-12-06 16:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.29 | 18.08 | 2.83 | 9.74 | -18.39 | 77.27 | -13.74 | 145.05 | 0.3931 | -282.8 | -422.8 | |
|
previous
or next observation for the same group /

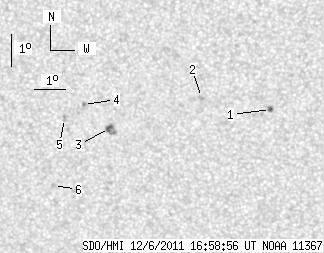

back to the solar disc SDO HMI 2011-12-06 16:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.22 | 2.56 | 1.17 | 1.35 | -17.90 | 81.86 | -9.14 | 154.06 | 0.3473 | 950.9 | 938.8 | |
| 0.00 | 2.05 | 0.00 | 1.09 | -17.52 | 79.71 | -11.30 | 148.50 | 0.3590 | 943.0 | 836.9 | |
| 3.07 | 7.42 | 1.66 | 4.00 | -18.49 | 76.71 | -14.30 | 143.86 | 0.3989 | -966.5 | -817.2 | |
| 0.00 | 1.53 | 0.00 | 0.83 | -17.75 | 75.94 | -15.07 | 141.24 | 0.3972 | -818.0 | -769.7 | |
| 0.00 | 2.56 | 0.00 | 1.39 | -18.18 | 75.29 | -15.72 | 140.80 | 0.4090 | -765.0 | -633.6 | |
| 0.00 | 1.96 | 0.00 | 1.08 | -20.28 | 74.72 | -16.29 | 143.08 | 0.4398 | -800.0 | -521.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
