SDO HMI 2011-12-06 16:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.05 | 0.00 | 6.89 | 13.08 | 48.92 | -42.09 | 71.17 | 0.6929 | 606.5 | 498.9 | |
|
previous
or next observation for the same group /

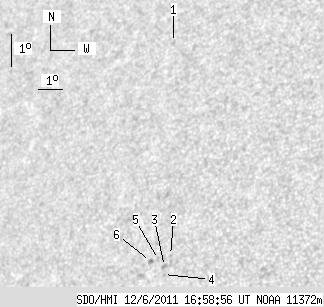

back to the solar disc SDO HMI 2011-12-06 16:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.79 | 0.00 | 1.28 | 18.58 | 48.00 | -43.01 | 63.96 | 0.7220 | 487.0 | 317.4 | |
| 0.00 | 1.11 | 0.00 | 0.75 | 12.06 | 49.51 | -41.50 | 72.36 | 0.6823 | 550.0 | 397.7 | |
| 0.00 | 2.47 | 0.00 | 1.67 | 11.72 | 49.33 | -41.68 | 72.89 | 0.6836 | 698.0 | 592.2 | |
| 0.00 | 0.85 | 0.00 | 0.58 | 11.48 | 49.33 | -41.68 | 73.24 | 0.6829 | 711.0 | 561.0 | |
| 0.00 | 1.53 | 0.00 | 1.04 | 11.94 | 49.04 | -41.96 | 72.68 | 0.6876 | 577.0 | 536.6 | |
| 0.00 | 2.30 | 0.00 | 1.57 | 11.87 | 48.73 | -42.28 | 72.87 | 0.6913 | 616.0 | 547.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
