groupProj. UProj. WSCorr. UCorr. WS BLLCMPos. angler MU MP

11365 11.51 54.38 7.22 34.28 19.35 123.44 33.54 302.37 0.6179 305.2 285.3


previous   or   next   observation for the same group / back to the solar disc

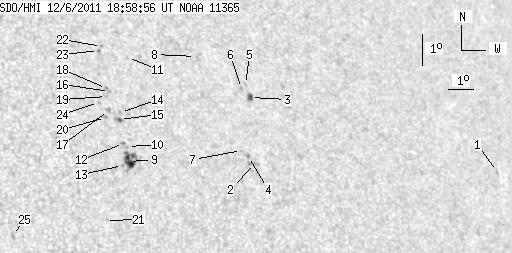

SDO HMI 2011-12-06 18:58:56 UT
No observation available
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)


spotProj. UProj. WSCorr. UCorr. WSBLLCMPos. angler MU MP

1 0.00 1.96 0.00 1.49 18.17 136.65 46.75 294.08 0.7604 558.0 433.4
2 0.00 3.41 0.00 2.22 18.43 126.56 36.66 298.95 0.6496 -458.0 -512.6
3 2.90 3.50 1.92 2.31 20.50 126.95 37.05 301.61 0.6650 -742.3 -601.4
4 0.00 1.36 0.00 0.89 18.65 126.38 36.48 299.36 0.6487 -831.0 -657.3
5 0.00 1.28 0.00 0.85 20.91 126.87 36.97 302.22 0.6664 -527.0 -391.1
6 0.00 1.62 0.00 1.07 20.78 126.68 36.78 302.16 0.6635 -758.0 -686.6
7 0.00 0.85 0.00 0.55 18.83 126.15 36.25 299.76 0.6470 -686.0 -545.5
8 0.00 0.68 0.00 0.44 21.80 125.16 35.26 304.51 0.6528 -312.0 -332.0
9 7.16 17.56 4.40 10.80 18.50 121.85 31.95 302.05 0.5944 1000.6 671.9
10 0.00 1.02 0.00 0.63 18.96 121.88 31.98 302.74 0.5977 474.0 335.0
11 0.00 0.94 0.00 0.59 21.77 122.54 32.64 306.30 0.6238 625.0 467.0
12 0.00 1.88 0.00 1.16 19.06 121.75 31.85 302.97 0.5968 703.0 561.5
13 0.00 1.02 0.00 0.63 18.37 121.57 31.67 302.07 0.5902 892.0 802.8
14 0.00 1.62 0.00 1.00 20.03 121.85 31.95 304.33 0.6044 549.0 305.7
15 1.45 3.41 0.90 2.11 19.81 121.77 31.87 304.07 0.6019 710.0 621.5
16 0.00 1.02 0.00 0.64 20.69 121.60 31.70 305.48 0.6059 620.0 524.8
17 0.00 2.64 0.00 1.63 20.09 121.42 31.52 304.74 0.5998 885.0 651.9
18 0.00 0.94 0.00 0.58 20.79 121.51 31.61 305.68 0.6055 672.0 534.5
19 0.00 0.94 0.00 0.58 20.53 121.45 31.55 305.36 0.6031 831.0 669.5
20 0.00 1.45 0.00 0.89 19.87 121.27 31.36 304.54 0.5965 844.0 743.1
21 0.00 0.34 0.00 0.20 16.67 120.63 30.72 300.11 0.5680 -268.0 -261.0
22 0.00 1.11 0.00 0.70 22.12 121.65 31.75 307.46 0.6164 528.0 500.5
23 0.00 1.36 0.00 0.85 21.99 121.50 31.60 307.40 0.6139 769.0 649.8
24 0.00 0.85 0.00 0.53 20.35 121.11 31.21 305.35 0.5980 694.0 579.4
25 0.00 1.62 0.00 0.94 16.21 117.27 27.37 302.02 0.5227 -503.0 -394.8


  		• Proj. U -  Projected umbra area in millionths of solar disc, negative values indicate
    that the umbra consists of fragmented regions which cannot be separated without losing umbral area.
    In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that
    the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
  		• Proj. WS -  Projected whole spot area in millionths of solar disc, negative values indicate
    that several umbras have a common penumbra, e.g. -7 means that the given umbra shares
    a penumbra with umbra No.7, and the WS value is indicated at No.7.
  		• Corr. U -  Corrected umbra area in millionths of solar hemisphere, for negative values see above
  		• Corr. WS -  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
  		• B -  Heliographic latitude B; positive: North, negative: South
  		• L -  Heliographic longitude L
  		• LCM -  Longitudinal distance from the Sun's central meridian
  		• Pos. angle -  Position angle
  		• r -  Distance from the centre of Sun's disc in terms of Sun's radius
  		• MU -  Mean magnetic field within the umbra contour averaged the pixel values with sign.
  		• MP -  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
