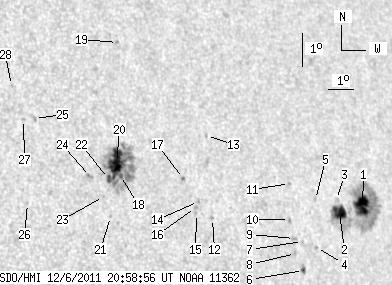

SDO HMI 2011-12-06 20:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 58.65 | 263.23 | 40.40 | 182.45 | 7.40 | 132.34 | 43.55 | 280.65 | 0.6954 | -86.9 | -65.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-06 20:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.14 | 128.47 | 12.78 | 95.44 | 6.97 | 136.83 | 48.03 | 279.16 | 0.7499 | -855.1 | -232.6 | |
| 11.68 | -1.00 | 8.54 | -1.00 | 6.76 | 135.78 | 46.99 | 279.02 | 0.7376 | -840.2 | 999999 | |
| 0.00 | 1.96 | 0.00 | 1.43 | 7.15 | 135.70 | 46.91 | 279.56 | 0.7371 | -250.0 | -304.5 | |
| 0.00 | 1.19 | 0.00 | 0.85 | 5.72 | 134.67 | 45.87 | 277.75 | 0.7232 | -578.0 | -500.1 | |
| 0.00 | 1.36 | 0.00 | 0.98 | 7.15 | 134.79 | 46.00 | 279.70 | 0.7264 | -651.0 | -505.6 | |
| 1.70 | 3.84 | 1.20 | 2.71 | 5.04 | 134.05 | 45.25 | 276.88 | 0.7150 | 372.2 | 53.3 | |
| 0.00 | 1.19 | 0.00 | 0.84 | 5.90 | 134.09 | 45.30 | 278.08 | 0.7164 | -361.0 | -326.4 | |
| 0.00 | 1.62 | 0.00 | 1.14 | 5.55 | 133.76 | 44.96 | 277.63 | 0.7120 | -659.0 | -520.6 | |
| 0.00 | 2.47 | 0.00 | 1.74 | 5.99 | 133.76 | 44.97 | 278.25 | 0.7125 | -811.0 | -585.4 | |
| 0.00 | 1.19 | 0.00 | 0.84 | 6.56 | 133.61 | 44.82 | 279.06 | 0.7115 | -605.0 | -559.1 | |
| 0.00 | 1.11 | 0.00 | 0.78 | 7.63 | 133.75 | 44.95 | 280.54 | 0.7146 | -574.0 | -447.5 | |
| 0.00 | 1.19 | 0.00 | 0.80 | 6.60 | 130.46 | 41.67 | 279.64 | 0.6722 | -718.0 | -579.9 | |
| 0.00 | 1.36 | 0.00 | 0.92 | 9.07 | 130.53 | 41.73 | 283.27 | 0.6777 | -611.0 | -509.3 | |
| 0.00 | 1.28 | 0.00 | 0.85 | 7.10 | 129.96 | 41.17 | 280.49 | 0.6666 | -798.0 | -695.2 | |
| 0.00 | 0.51 | 0.00 | 0.34 | 6.75 | 129.84 | 41.05 | 279.98 | 0.6645 | -732.0 | -660.8 | |
| 0.00 | 1.62 | 0.00 | 1.07 | 6.92 | 129.82 | 41.03 | 280.25 | 0.6645 | -790.0 | -561.9 | |
| 0.00 | 1.45 | 0.00 | 0.95 | 7.79 | 129.44 | 40.65 | 281.63 | 0.6613 | -859.0 | -801.8 | |
| 1.53 | 100.77 | 0.98 | 64.13 | 7.88 | 127.02 | 38.22 | 282.36 | 0.6297 | 387.8 | 241.7 | |
| 0.00 | 1.45 | 0.00 | 0.94 | 11.87 | 127.46 | 38.66 | 288.36 | 0.6465 | 730.0 | 646.3 | |
| 24.38 | -18.00 | 15.50 | -18.00 | 8.27 | 126.91 | 38.11 | 283.00 | 0.6292 | 919.9 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.54 | 6.66 | 126.52 | 37.72 | 280.55 | 0.6204 | 533.0 | 444.9 | |
| 2.22 | -18.00 | 1.40 | -18.00 | 7.79 | 126.55 | 37.76 | 282.35 | 0.6233 | 913.5 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.54 | 7.26 | 126.31 | 37.51 | 281.56 | 0.6189 | 607.0 | 504.8 | |
| 0.00 | 2.13 | 0.00 | 1.33 | 7.85 | 125.88 | 37.09 | 282.63 | 0.6145 | 874.0 | 738.8 | |
| 0.00 | 2.05 | 0.00 | 1.26 | 9.59 | 124.00 | 35.21 | 286.07 | 0.5938 | 582.0 | 557.7 | |
| 0.00 | 0.85 | 0.00 | 0.52 | 7.05 | 123.48 | 34.69 | 281.98 | 0.5796 | 801.0 | 588.4 | |
| 0.00 | 1.45 | 0.00 | 0.89 | 9.56 | 123.59 | 34.80 | 286.17 | 0.5882 | 549.0 | 499.8 | |
| 0.00 | 1.02 | 0.00 | 0.62 | 10.58 | 123.28 | 34.49 | 287.99 | 0.5874 | 635.0 | 570.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
