SDO HMI 2011-12-06 21:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.10 | 40.40 | 5.20 | 25.65 | 19.54 | 122.43 | 34.19 | 302.09 | 0.6272 | 357.1 | 524.4 | |
|
previous
or next observation for the same group /

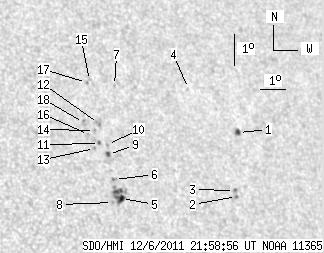

back to the solar disc SDO HMI 2011-12-06 21:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.47 | 2.98 | 1.67 | 2.02 | 20.45 | 126.97 | 38.73 | 300.61 | 0.6834 | -638.2 | -580.3 | |
| 0.00 | 1.36 | 0.00 | 0.90 | 18.44 | 126.32 | 38.08 | 298.20 | 0.6663 | -786.0 | -681.4 | |
| 0.00 | 1.11 | 0.00 | 0.73 | 18.63 | 126.29 | 38.05 | 298.48 | 0.6668 | -811.0 | -686.3 | |
| 0.00 | 0.43 | 0.00 | 0.28 | 21.84 | 125.38 | 37.14 | 303.40 | 0.6736 | -605.0 | -504.0 | |
| 2.64 | 15.69 | 1.65 | 9.82 | 18.39 | 121.88 | 33.64 | 300.75 | 0.6139 | 876.4 | 812.3 | |
| 0.00 | 1.62 | 0.00 | 1.02 | 18.98 | 121.75 | 33.51 | 301.70 | 0.6159 | 700.0 | 578.6 | |
| 0.00 | 0.85 | 0.00 | 0.55 | 21.94 | 122.50 | 34.26 | 305.40 | 0.6428 | 566.0 | 463.4 | |
| 0.00 | 1.11 | 0.00 | 0.69 | 18.26 | 121.52 | 33.28 | 300.80 | 0.6089 | 739.0 | 708.8 | |
| 2.05 | 2.13 | 1.29 | 1.34 | 19.76 | 121.71 | 33.47 | 302.87 | 0.6202 | 624.6 | 570.0 | |
| 0.00 | 1.19 | 0.00 | 0.75 | 20.08 | 121.75 | 33.51 | 303.30 | 0.6226 | 609.0 | 402.4 | |
| 0.94 | 1.19 | 0.59 | 0.75 | 20.11 | 121.45 | 33.21 | 303.55 | 0.6194 | 713.6 | 719.7 | |
| 0.00 | 2.73 | 0.00 | 1.73 | 20.74 | 121.57 | 33.33 | 304.36 | 0.6248 | 631.0 | 505.8 | |
| 0.00 | 0.94 | 0.00 | 0.59 | 19.95 | 121.23 | 32.99 | 303.48 | 0.6159 | 833.0 | 766.7 | |
| 0.00 | 1.28 | 0.00 | 0.81 | 20.52 | 121.36 | 33.12 | 304.20 | 0.6210 | 683.0 | 539.3 | |
| 0.00 | 1.28 | 0.00 | 0.82 | 22.10 | 121.58 | 33.34 | 306.26 | 0.6339 | 517.0 | 532.4 | |
| 0.00 | 0.68 | 0.00 | 0.43 | 20.39 | 121.11 | 32.87 | 304.20 | 0.6173 | 750.0 | 652.5 | |
| 0.00 | 1.02 | 0.00 | 0.65 | 22.04 | 121.45 | 33.21 | 306.27 | 0.6320 | 718.0 | 611.2 | |
| 0.00 | 2.81 | 0.00 | 1.77 | 20.77 | 121.01 | 32.77 | 304.81 | 0.6187 | 706.0 | 508.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
