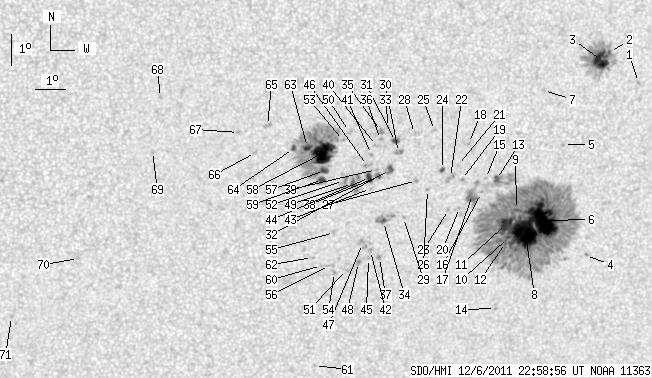

SDO HMI 2011-12-06 22:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 190.47 | 1056.62 | 108.14 | 601.67 | -21.94 | 107.58 | 19.89 | 219.68 | 0.4943 | 195.5 | 171.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-06 22:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.78 | -18.29 | 112.24 | 24.55 | 231.24 | 0.5080 | 759.0 | 613.9 | |
| 1.19 | 74.60 | 0.68 | 42.19 | -17.36 | 111.12 | 23.43 | 231.56 | 0.4866 | 745.8 | 490.2 | |
| 16.71 | -2.00 | 9.46 | -2.00 | -17.61 | 110.89 | 23.20 | 230.87 | 0.4860 | 1130.8 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.66 | -23.78 | 111.35 | 23.66 | 222.13 | 0.5496 | -600.0 | -538.2 | |
| 0.00 | 1.11 | 0.00 | 0.63 | -20.23 | 109.98 | 22.29 | 225.58 | 0.5003 | -524.0 | -468.7 | |
| 49.20 | 645.68 | 28.51 | 373.64 | -22.65 | 109.68 | 21.99 | 221.70 | 0.5216 | 1293.3 | 432.8 | |
| 0.00 | 1.53 | 0.00 | 0.86 | -18.54 | 109.06 | 21.37 | 227.12 | 0.4735 | 728.0 | 567.6 | |
| 44.08 | -6.00 | 25.53 | -6.00 | -23.06 | 109.13 | 21.44 | 220.44 | 0.5206 | 1289.9 | 999999 | |
| 1.53 | -6.00 | 0.88 | -6.00 | -22.29 | 108.69 | 21.00 | 220.95 | 0.5081 | 1255.1 | 999999 | |
| 1.28 | -6.00 | 0.74 | -6.00 | -23.19 | 108.56 | 20.87 | 219.55 | 0.5165 | 881.7 | 999999 | |
| 10.15 | -6.00 | 5.84 | -6.00 | -22.74 | 108.42 | 20.73 | 219.98 | 0.5103 | 1293.2 | 999999 | |
| 1.71 | -6.00 | 0.99 | -6.00 | -23.35 | 108.49 | 20.80 | 219.23 | 0.5175 | 712.7 | 999999 | |
| 1.96 | 19.27 | 1.11 | 10.95 | -21.33 | 107.87 | 20.18 | 221.23 | 0.4896 | -467.3 | 366.6 | |
| 0.00 | 0.94 | 0.00 | 0.55 | -25.50 | 108.51 | 20.82 | 216.52 | 0.5413 | 522.0 | 413.6 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -21.30 | 107.49 | 19.80 | 220.76 | 0.4855 | -555.0 | -361.7 | |
| 0.00 | 1.28 | 0.00 | 0.73 | -21.75 | 107.42 | 19.73 | 220.02 | 0.4897 | 625.0 | 446.7 | |
| 0.00 | 17.31 | 0.00 | 9.81 | -21.81 | 107.13 | 19.44 | 219.53 | 0.4875 | 94.0 | 188.9 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -20.19 | 106.78 | 19.09 | 221.39 | 0.4660 | -682.0 | -642.2 | |
| 0.00 | 0.85 | 0.00 | 0.48 | -21.33 | 106.69 | 19.00 | 219.59 | 0.4779 | -453.0 | -339.9 | |
| 0.00 | 1.11 | 0.00 | 0.63 | -22.22 | 106.75 | 19.06 | 218.41 | 0.4885 | 550.0 | 430.6 | |
| 0.00 | 0.94 | 0.00 | 0.53 | -20.89 | 106.50 | 18.81 | 219.96 | 0.4710 | -695.0 | -535.6 | |
| 0.00 | 4.95 | 0.00 | 2.78 | -21.27 | 106.31 | 18.62 | 219.14 | 0.4734 | -856.0 | -669.3 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -22.29 | 106.39 | 18.70 | 217.81 | 0.4858 | 6.0 | -12.3 | |
| 1.71 | 2.30 | 0.95 | 1.29 | -21.01 | 106.01 | 18.32 | 219.07 | 0.4676 | 767.7 | 661.9 | |
| 0.00 | 1.88 | 0.00 | 1.04 | -19.78 | 105.60 | 17.91 | 220.28 | 0.4494 | -733.0 | -613.3 | |
| 0.00 | 1.28 | 0.00 | 0.72 | -21.65 | 105.59 | 17.90 | 217.54 | 0.4709 | -776.0 | -605.1 | |
| 0.00 | 2.22 | 0.00 | 1.24 | -21.36 | 105.19 | 17.50 | 217.33 | 0.4638 | -915.0 | -598.2 | |
| 0.00 | 1.71 | 0.00 | 0.94 | -19.88 | 104.95 | 17.26 | 219.13 | 0.4440 | -678.0 | -591.0 | |
| 0.00 | 1.02 | 0.00 | 0.58 | -22.54 | 104.91 | 17.22 | 215.29 | 0.4752 | 567.0 | 430.2 | |
| 0.00 | 4.52 | 0.00 | 2.50 | -20.47 | 104.49 | 16.80 | 217.51 | 0.4466 | -723.0 | -672.1 | |
| 3.15 | 3.84 | 1.74 | 2.12 | -20.13 | 104.35 | 16.66 | 217.80 | 0.4412 | -872.6 | -766.5 | |
| 2.98 | 5.80 | 1.65 | 3.21 | -21.01 | 104.29 | 16.60 | 216.41 | 0.4511 | -742.2 | -663.2 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -19.69 | 104.08 | 16.39 | 218.01 | 0.4332 | -764.0 | -623.0 | |
| 2.47 | 11.25 | 1.39 | 6.31 | -22.67 | 104.25 | 16.56 | 214.11 | 0.4710 | -712.9 | -676.6 | |
| 0.00 | 2.56 | 0.00 | 1.40 | -19.81 | 103.86 | 16.17 | 217.46 | 0.4326 | -1025.0 | -833.1 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -20.06 | 103.85 | 16.16 | 217.08 | 0.4356 | -873.0 | -670.2 | |
| 0.00 | 2.39 | 0.00 | 1.35 | -23.83 | 104.27 | 16.58 | 212.68 | 0.4855 | -781.0 | -679.8 | |
| 1.45 | 3.15 | 0.80 | 1.75 | -21.23 | 103.92 | 16.23 | 215.50 | 0.4504 | -828.4 | -663.2 | |
| 0.00 | 1.02 | 0.00 | 0.57 | -21.01 | 103.83 | 16.14 | 215.66 | 0.4469 | -746.0 | -673.7 | |
| 0.00 | 2.22 | 0.00 | 1.22 | -20.25 | 103.74 | 16.05 | 216.61 | 0.4369 | -890.0 | -689.6 | |
| 0.00 | 1.53 | 0.00 | 0.85 | -20.54 | 103.61 | 15.92 | 215.98 | 0.4391 | -920.0 | -733.3 | |
| 0.00 | 1.79 | 0.00 | 1.01 | -23.60 | 103.94 | 16.25 | 212.44 | 0.4799 | -702.0 | -556.4 | |
| 0.00 | 1.19 | 0.00 | 0.66 | -21.61 | 103.70 | 16.01 | 214.62 | 0.4531 | -321.0 | -370.3 | |
| 4.60 | 5.37 | 2.55 | 2.97 | -21.26 | 103.62 | 15.93 | 214.98 | 0.4482 | -903.6 | -680.9 | |
| 0.00 | 0.94 | 0.00 | 0.53 | -23.86 | 103.90 | 16.21 | 212.08 | 0.4828 | -705.0 | -635.0 | |
| 0.00 | 3.07 | 0.00 | 1.69 | -20.88 | 103.52 | 15.83 | 215.33 | 0.4425 | -884.0 | -778.3 | |
| 0.00 | 5.54 | 0.00 | 3.12 | -23.38 | 103.64 | 15.95 | 212.26 | 0.4746 | -792.0 | -774.3 | |
| 0.00 | 1.53 | 0.00 | 0.87 | -23.99 | 103.58 | 15.89 | 211.42 | 0.4819 | -813.0 | -689.2 | |
| 2.56 | 12.19 | 1.41 | 6.74 | -21.45 | 103.09 | 15.40 | 213.82 | 0.4458 | -866.8 | -709.1 | |
| 0.00 | 2.73 | 0.00 | 1.49 | -19.81 | 102.82 | 15.13 | 215.68 | 0.4228 | -643.0 | -613.6 | |
| 0.00 | 2.73 | 0.00 | 1.54 | -24.22 | 103.21 | 15.52 | 210.57 | 0.4818 | -504.0 | -495.5 | |
| 0.00 | 6.22 | 0.00 | 3.43 | -21.36 | 102.78 | 15.09 | 213.43 | 0.4419 | -577.0 | -672.2 | |
| 0.00 | 1.62 | 0.00 | 0.89 | -20.09 | 102.65 | 14.96 | 214.97 | 0.4248 | -875.0 | -696.3 | |
| 0.00 | 1.88 | 0.00 | 1.06 | -24.31 | 102.82 | 15.13 | 209.84 | 0.4800 | -643.0 | -498.2 | |
| 0.00 | 1.53 | 0.00 | 0.86 | -23.02 | 102.66 | 14.97 | 211.11 | 0.4622 | -816.0 | -646.0 | |
| 0.00 | 3.24 | 0.00 | 1.82 | -24.08 | 102.62 | 14.93 | 209.78 | 0.4756 | -531.0 | -424.3 | |
| 4.35 | 163.28 | 2.39 | 89.09 | -21.04 | 102.12 | 14.43 | 212.72 | 0.4322 | -789.3 | -540.5 | |
| 30.01 | -57.00 | 16.40 | -57.00 | -20.47 | 102.04 | 14.35 | 213.35 | 0.4241 | -1219.8 | 999999 | |
| 3.75 | -57.00 | 2.06 | -57.00 | -21.33 | 102.09 | 14.40 | 212.28 | 0.4356 | -730.1 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.86 | -24.08 | 102.35 | 14.66 | 209.35 | 0.4735 | -462.0 | -437.0 | |
| 0.00 | 1.28 | 0.00 | 0.74 | -27.37 | 102.54 | 14.85 | 206.19 | 0.5177 | 55.0 | 105.7 | |
| 0.00 | 0.85 | 0.00 | 0.48 | -23.83 | 102.02 | 14.33 | 209.10 | 0.4676 | -543.0 | -517.4 | |
| 3.33 | -57.00 | 1.81 | -57.00 | -20.31 | 101.50 | 13.81 | 212.59 | 0.4174 | -1178.9 | 999999 | |
| 2.30 | -57.00 | 1.25 | -57.00 | -20.34 | 101.05 | 13.36 | 211.71 | 0.4140 | -926.8 | 999999 | |
| 0.00 | 2.98 | 0.00 | 1.61 | -19.62 | 100.15 | 12.46 | 210.96 | 0.3968 | -955.0 | -738.7 | |
| 0.00 | 2.13 | 0.00 | 1.15 | -20.47 | 99.83 | 12.14 | 209.19 | 0.4058 | -750.0 | -521.7 | |
| 0.00 | 1.71 | 0.00 | 0.92 | -19.84 | 99.24 | 11.55 | 208.81 | 0.3925 | -813.0 | -676.3 | |
| 0.00 | 1.19 | 0.00 | 0.63 | -18.74 | 96.69 | 9.00 | 204.54 | 0.3582 | -786.0 | -609.1 | |
| 0.00 | 0.85 | 0.00 | 0.46 | -20.43 | 96.53 | 8.84 | 202.24 | 0.3822 | -640.0 | -572.7 | |
| 0.00 | 1.11 | 0.00 | 0.61 | -23.85 | 94.34 | 6.65 | 194.57 | 0.4227 | -816.0 | -690.9 | |
| 0.00 | 0.94 | 0.00 | 0.52 | -25.74 | 92.23 | 4.54 | 189.27 | 0.4450 | -849.0 | -611.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
