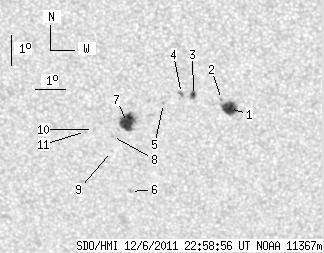

SDO HMI 2011-12-06 22:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.16 | 50.38 | 18.55 | 28.20 | -25.28 | 76.32 | -11.38 | 157.57 | 0.4678 | -111.2 | -13.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-06 22:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.19 | 15.35 | 6.76 | 8.51 | -25.02 | 78.41 | -9.28 | 161.06 | 0.4522 | 991.0 | 688.1 | |
| 0.00 | 1.11 | 0.00 | 0.61 | -24.73 | 78.17 | -9.52 | 160.37 | 0.4492 | 830.0 | 728.7 | |
| 2.98 | 4.43 | 1.66 | 2.46 | -24.60 | 77.25 | -10.44 | 158.55 | 0.4524 | 936.9 | 708.8 | |
| 1.28 | 2.47 | 0.71 | 1.37 | -24.53 | 76.86 | -10.83 | 157.78 | 0.4537 | 797.7 | 792.3 | |
| 0.00 | 1.11 | 0.00 | 0.62 | -24.86 | 76.24 | -11.45 | 156.95 | 0.4621 | 540.0 | 270.7 | |
| 0.00 | 1.02 | 0.00 | 0.59 | -27.77 | 74.81 | -12.88 | 157.19 | 0.5107 | -755.0 | -619.0 | |
| 16.71 | 20.80 | 9.42 | 11.72 | -25.48 | 74.97 | -12.72 | 155.36 | 0.4786 | -1020.7 | -661.9 | |
| 0.00 | 1.28 | 0.00 | 0.72 | -25.94 | 74.42 | -13.27 | 154.88 | 0.4884 | -689.0 | -520.7 | |
| 0.00 | 0.85 | 0.00 | 0.49 | -26.44 | 74.33 | -13.37 | 155.21 | 0.4957 | -611.0 | -427.8 | |
| 0.00 | 0.85 | 0.00 | 0.48 | -25.72 | 73.80 | -13.89 | 153.66 | 0.4894 | -661.0 | -544.8 | |
| 0.00 | 1.11 | 0.00 | 0.63 | -25.78 | 73.52 | -14.17 | 153.28 | 0.4922 | -700.0 | -483.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
