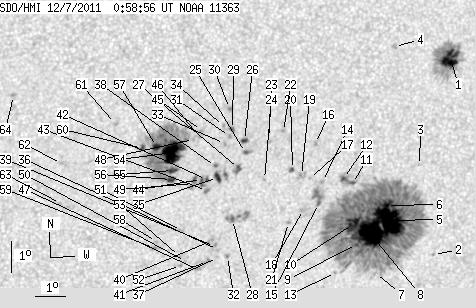

SDO HMI 2011-12-07 00:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 185.27 | 1028.32 | 105.90 | 589.66 | -21.96 | 107.59 | 21.00 | 221.18 | 0.5052 | 216.2 | 190.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-07 00:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.59 | 74.53 | 10.61 | 42.51 | -17.56 | 110.90 | 24.31 | 232.21 | 0.4987 | 1132.1 | 471.1 | |
| 0.00 | 1.11 | 0.00 | 0.66 | -23.76 | 111.38 | 24.80 | 223.43 | 0.5605 | -566.0 | -490.5 | |
| 0.00 | 0.94 | 0.00 | 0.54 | -20.91 | 110.36 | 23.77 | 226.33 | 0.5228 | -489.0 | -387.5 | |
| 0.00 | 2.39 | 0.00 | 1.34 | -17.18 | 108.96 | 22.37 | 230.65 | 0.4722 | 830.0 | 646.4 | |
| 44.00 | 639.65 | 25.70 | 372.81 | -22.66 | 109.63 | 23.04 | 222.95 | 0.5321 | 1297.2 | 447.7 | |
| 1.88 | -5.00 | 1.09 | -5.00 | -22.18 | 109.44 | 22.85 | 223.40 | 0.5254 | 1369.7 | 999999 | |
| 0.00 | 1.79 | 0.00 | 1.06 | -24.37 | 109.45 | 22.86 | 220.44 | 0.5478 | 55.0 | 53.2 | |
| 44.85 | -5.00 | 26.17 | -5.00 | -23.08 | 109.04 | 22.45 | 221.68 | 0.5305 | 1264.4 | 999999 | |
| 1.28 | -5.00 | 0.75 | -5.00 | -23.43 | 108.62 | 22.03 | 220.68 | 0.5300 | 729.9 | 999999 | |
| 10.06 | -5.00 | 5.83 | -5.00 | -22.79 | 108.37 | 21.78 | 221.25 | 0.5208 | 1249.4 | 999999 | |
| 1.36 | 10.32 | 0.78 | 5.90 | -21.48 | 108.15 | 21.56 | 222.84 | 0.5050 | 656.5 | 264.8 | |
| 1.88 | -11.00 | 1.07 | -11.00 | -21.32 | 107.82 | 21.23 | 222.65 | 0.5000 | -497.3 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.75 | -24.34 | 108.05 | 21.46 | 218.79 | 0.5342 | 559.0 | 392.9 | |
| 0.00 | 2.47 | 0.00 | 1.41 | -21.41 | 107.12 | 20.53 | 221.60 | 0.4938 | 534.0 | 364.4 | |
| 1.36 | 14.67 | 0.78 | 8.37 | -22.11 | 107.09 | 20.50 | 220.56 | 0.5011 | 663.4 | 50.9 | |
| 0.00 | 1.62 | 0.00 | 0.91 | -20.21 | 106.72 | 20.13 | 222.85 | 0.4768 | -804.0 | -686.2 | |
| 0.00 | 1.02 | 0.00 | 0.58 | -21.32 | 106.67 | 20.08 | 221.13 | 0.4882 | -511.0 | -447.8 | |
| 0.00 | 3.58 | 0.00 | 2.04 | -22.31 | 106.61 | 20.02 | 219.65 | 0.4984 | 234.0 | 277.8 | |
| 0.00 | 5.20 | 0.00 | 2.94 | -21.22 | 106.39 | 19.80 | 220.89 | 0.4843 | -951.0 | -647.5 | |
| 1.36 | 2.22 | 0.77 | 1.25 | -21.03 | 106.06 | 19.47 | 220.71 | 0.4789 | 776.1 | 776.7 | |
| 0.00 | 1.36 | 0.00 | 0.78 | -22.72 | 106.16 | 19.57 | 218.47 | 0.4988 | 647.0 | 507.2 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -19.83 | 105.60 | 19.01 | 221.86 | 0.4611 | -750.0 | -606.9 | |
| 0.00 | 2.13 | 0.00 | 1.19 | -20.14 | 105.14 | 18.55 | 220.71 | 0.4599 | -373.0 | -408.7 | |
| 0.00 | 0.94 | 0.00 | 0.53 | -21.35 | 105.16 | 18.57 | 218.97 | 0.4736 | -765.0 | -594.8 | |
| 1.53 | 3.41 | 0.85 | 1.90 | -20.49 | 104.42 | 17.83 | 219.11 | 0.4566 | -768.2 | -673.5 | |
| 1.71 | 2.81 | 0.95 | 1.56 | -20.11 | 104.34 | 17.75 | 219.56 | 0.4515 | -950.1 | -706.9 | |
| 2.73 | 6.14 | 1.52 | 3.42 | -21.00 | 104.25 | 17.66 | 218.11 | 0.4608 | -718.9 | -611.2 | |
| 1.11 | 14.24 | 0.63 | 8.03 | -22.62 | 104.26 | 17.67 | 215.88 | 0.4800 | -773.8 | -453.5 | |
| 0.68 | 2.30 | 0.38 | 1.27 | -19.77 | 103.91 | 17.32 | 219.41 | 0.4431 | -949.8 | -805.3 | |
| 0.00 | 1.53 | 0.00 | 0.84 | -19.11 | 103.73 | 17.15 | 220.16 | 0.4338 | -911.0 | -759.1 | |
| 0.00 | 1.88 | 0.00 | 1.04 | -19.99 | 103.83 | 17.24 | 218.96 | 0.4449 | -879.0 | -638.1 | |
| 0.00 | 1.79 | 0.00 | 1.02 | -23.81 | 104.25 | 17.66 | 214.33 | 0.4942 | -873.0 | -690.0 | |
| 0.00 | 1.53 | 0.00 | 0.85 | -20.21 | 103.69 | 17.10 | 218.41 | 0.4461 | -957.0 | -785.4 | |
| 0.00 | 1.11 | 0.00 | 0.61 | -19.67 | 103.60 | 17.01 | 219.07 | 0.4390 | -861.0 | -654.7 | |
| 4.35 | 10.57 | 2.42 | 5.89 | -21.28 | 103.59 | 17.00 | 216.68 | 0.4579 | -867.1 | -681.9 | |
| 0.00 | 0.77 | 0.00 | 0.44 | -23.59 | 103.88 | 17.29 | 214.07 | 0.4883 | -395.0 | -512.0 | |
| 0.00 | 0.94 | 0.00 | 0.53 | -23.85 | 103.92 | 17.33 | 213.80 | 0.4917 | -554.0 | -505.4 | |
| 0.85 | 1.45 | 0.47 | 0.80 | -20.93 | 103.48 | 16.89 | 217.01 | 0.4527 | -906.5 | -957.4 | |
| 0.00 | 2.39 | 0.00 | 1.35 | -23.49 | 103.77 | 17.18 | 214.02 | 0.4861 | -866.0 | -716.4 | |
| 0.00 | 3.16 | 0.00 | 1.78 | -23.33 | 103.58 | 16.99 | 213.94 | 0.4825 | -939.0 | -764.4 | |
| 0.00 | 2.64 | 0.00 | 1.50 | -23.97 | 103.60 | 17.01 | 213.16 | 0.4906 | -661.0 | -634.2 | |
| 1.36 | 6.23 | 0.76 | 3.46 | -21.34 | 103.23 | 16.64 | 216.03 | 0.4554 | -834.6 | -750.0 | |
| 0.00 | 2.90 | 0.00 | 1.62 | -21.69 | 103.27 | 16.68 | 215.61 | 0.4600 | -650.0 | -523.1 | |
| 1.11 | -42.00 | 0.62 | -42.00 | -21.34 | 103.06 | 16.48 | 215.77 | 0.4538 | -895.3 | 999999 | |
| 0.00 | 1.62 | 0.00 | 0.89 | -19.80 | 102.89 | 16.30 | 217.73 | 0.4335 | -753.0 | -648.7 | |
| 0.00 | 1.19 | 0.00 | 0.66 | -19.98 | 102.85 | 16.26 | 217.37 | 0.4353 | -735.0 | -578.9 | |
| 0.00 | 2.64 | 0.00 | 1.50 | -24.23 | 103.29 | 16.70 | 212.39 | 0.4913 | -569.0 | -513.6 | |
| 0.00 | 0.85 | 0.00 | 0.47 | -20.08 | 102.66 | 16.07 | 216.92 | 0.4347 | -773.0 | -660.1 | |
| 0.00 | 6.05 | 0.00 | 3.36 | -21.47 | 102.81 | 16.23 | 215.19 | 0.4531 | -788.0 | -761.5 | |
| 0.00 | 0.94 | 0.00 | 0.53 | -23.97 | 102.85 | 16.27 | 212.04 | 0.4845 | -713.0 | -515.3 | |
| 0.00 | 2.30 | 0.00 | 1.29 | -22.97 | 102.59 | 16.00 | 212.86 | 0.4698 | -713.0 | -646.3 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -24.10 | 102.70 | 16.11 | 211.65 | 0.4849 | -663.0 | -519.5 | |
| 0.00 | 0.85 | 0.00 | 0.48 | -23.81 | 102.63 | 16.04 | 211.89 | 0.4806 | -526.0 | -474.4 | |
| 29.33 | 159.47 | 16.11 | 87.45 | -20.49 | 102.02 | 15.43 | 215.24 | 0.4337 | -1185.8 | -521.2 | |
| 4.01 | -54.00 | 2.21 | -54.00 | -21.06 | 102.08 | 15.49 | 214.54 | 0.4414 | -827.2 | 999999 | |
| 4.09 | -54.00 | 2.26 | -54.00 | -21.34 | 102.07 | 15.49 | 214.14 | 0.4449 | -718.8 | 999999 | |
| 4.26 | -54.00 | 2.33 | -54.00 | -20.30 | 101.47 | 14.89 | 214.57 | 0.4265 | -1125.5 | 999999 | |
| 0.00 | 1.19 | 0.00 | 0.67 | -23.33 | 101.80 | 15.21 | 211.15 | 0.4678 | -773.0 | -656.5 | |
| 0.00 | 2.39 | 0.00 | 1.34 | -23.55 | 101.76 | 15.17 | 210.81 | 0.4704 | -834.0 | -650.0 | |
| 1.53 | 3.92 | 0.84 | 2.14 | -20.36 | 101.02 | 14.44 | 213.68 | 0.4232 | -962.2 | -736.3 | |
| 0.00 | 1.88 | 0.00 | 1.02 | -19.57 | 100.08 | 13.49 | 213.05 | 0.4048 | -795.0 | -785.6 | |
| 0.00 | 2.05 | 0.00 | 1.11 | -20.83 | 98.44 | 11.85 | 208.17 | 0.4083 | -679.0 | -505.4 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -22.10 | 98.51 | 11.93 | 206.80 | 0.4265 | -696.0 | -539.7 | |
| 0.00 | 2.13 | 0.00 | 1.13 | -18.69 | 96.76 | 10.17 | 207.35 | 0.3656 | -926.0 | -725.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
