SDO HMI 2011-12-07 02:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.79 | 10.58 | 0.95 | 5.74 | -21.54 | 75.66 | -9.83 | 156.86 | 0.4034 | -565.0 | -532.8 | |
|
previous
or next observation for the same group /

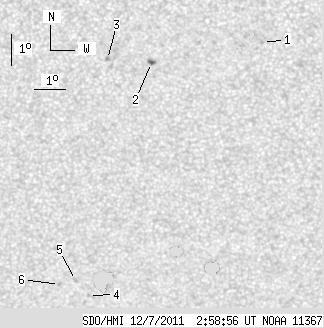

back to the solar disc SDO HMI 2011-12-07 02:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.11 | 0.00 | 0.58 | -17.90 | 80.35 | -5.14 | 164.62 | 0.3229 | 748.0 | 601.4 | |
| 1.79 | 3.16 | 0.95 | 1.67 | -18.53 | 76.85 | -8.64 | 156.02 | 0.3521 | -952.6 | -915.6 | |
| 0.00 | 1.88 | 0.00 | 1.00 | -18.43 | 75.47 | -10.03 | 152.61 | 0.3606 | -935.0 | -767.0 | |
| 0.00 | 1.19 | 0.00 | 0.67 | -25.98 | 74.27 | -11.23 | 158.33 | 0.4760 | -737.0 | -629.0 | |
| 0.00 | 2.13 | 0.00 | 1.20 | -25.49 | 73.88 | -11.61 | 157.23 | 0.4713 | -704.0 | -540.0 | |
| 0.00 | 1.11 | 0.00 | 0.62 | -25.62 | 73.33 | -12.16 | 156.40 | 0.4765 | -829.0 | -653.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
