SDO HMI 2011-12-07 02:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.76 | 0.00 | 5.10 | -15.60 | 47.06 | -38.43 | 114.39 | 0.6595 | 323.2 | 221.1 | |
|
previous
or next observation for the same group /

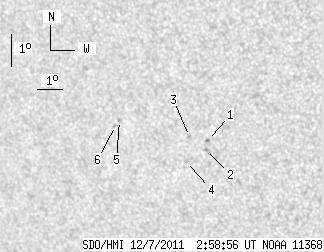

back to the solar disc SDO HMI 2011-12-07 02:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 0.93 | -15.60 | 48.51 | -36.98 | 115.07 | 0.6420 | 860.0 | 718.1 | |
| 0.00 | 1.11 | 0.00 | 0.72 | -15.88 | 48.37 | -37.12 | 115.41 | 0.6450 | 915.0 | 640.5 | |
| 0.00 | 0.94 | 0.00 | 0.61 | -15.48 | 47.84 | -37.65 | 114.56 | 0.6496 | 656.0 | 443.5 | |
| 0.00 | 1.79 | 0.00 | 1.17 | -16.25 | 47.55 | -37.94 | 115.53 | 0.6565 | 729.0 | 498.3 | |
| 0.00 | 1.11 | 0.00 | 0.75 | -15.00 | 45.18 | -40.31 | 112.65 | 0.6795 | -638.0 | -551.8 | |
| 0.00 | 1.36 | 0.00 | 0.92 | -15.15 | 44.98 | -40.51 | 112.78 | 0.6824 | -583.0 | -482.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
