SDO HMI 2011-12-07 03:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.62 | 11.85 | 0.86 | 6.29 | -18.78 | 76.82 | -8.13 | 157.82 | 0.3531 | -244.3 | -134.9 | |
|
previous
or next observation for the same group /

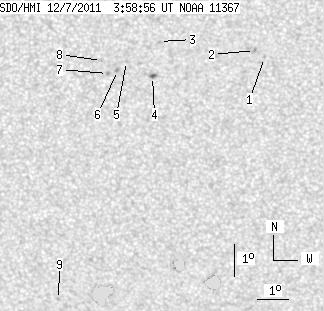

back to the solar disc SDO HMI 2011-12-07 03:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.94 | 0.00 | 0.49 | -17.94 | 80.36 | -4.58 | 166.25 | 0.3211 | 828.0 | 606.8 | |
| 0.00 | 1.96 | 0.00 | 1.02 | -17.72 | 80.06 | -4.89 | 165.19 | 0.3188 | 957.0 | 740.1 | |
| 0.00 | 1.19 | 0.00 | 0.63 | -17.44 | 77.11 | -7.84 | 156.71 | 0.3305 | 829.0 | 605.1 | |
| 1.62 | 1.96 | 0.86 | 1.04 | -18.53 | 76.84 | -8.11 | 157.34 | 0.3486 | -955.9 | -730.2 | |
| 0.00 | 0.68 | 0.00 | 0.36 | -18.07 | 76.04 | -8.90 | 154.80 | 0.3470 | -704.0 | -422.8 | |
| 0.00 | 1.28 | 0.00 | 0.68 | -18.35 | 75.75 | -9.20 | 154.44 | 0.3532 | -871.0 | -779.0 | |
| 0.00 | 1.28 | 0.00 | 0.68 | -18.44 | 75.43 | -9.52 | 153.79 | 0.3568 | -934.0 | -804.7 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -18.04 | 75.26 | -9.69 | 152.86 | 0.3522 | -668.0 | -530.1 | |
| 0.00 | 1.02 | 0.00 | 0.58 | -25.66 | 73.28 | -11.66 | 157.29 | 0.4739 | -779.0 | -659.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
