SDO HMI 2011-12-07 03:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.54 | 16.71 | 0.96 | 10.43 | 12.13 | 49.22 | -35.73 | 70.08 | 0.6102 | 721.9 | 587.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-07 03:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

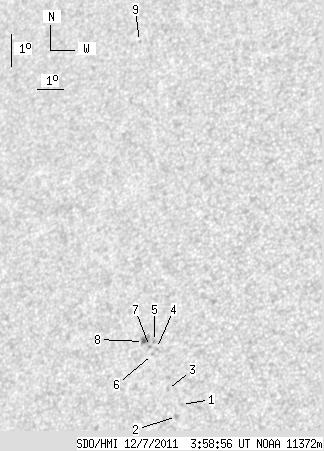

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.60 | 0.00 | 0.36 | 10.30 | 50.53 | -34.42 | 72.38 | 0.5857 | 769.0 | 624.9 | |
| 0.00 | 2.47 | 0.00 | 1.51 | 9.94 | 50.39 | -34.55 | 73.04 | 0.5863 | 635.0 | 525.8 | |
| 0.00 | 1.62 | 0.00 | 1.00 | 10.75 | 49.96 | -34.99 | 71.88 | 0.5950 | 696.0 | 553.3 | |
| 0.00 | 0.94 | 0.00 | 0.58 | 11.98 | 49.37 | -35.57 | 70.14 | 0.6073 | 785.0 | 635.2 | |
| 0.00 | 1.45 | 0.00 | 0.90 | 12.19 | 49.27 | -35.68 | 69.86 | 0.6095 | 646.0 | 581.7 | |
| 0.00 | 1.02 | 0.00 | 0.64 | 11.80 | 49.25 | -35.69 | 70.48 | 0.6082 | 724.0 | 644.7 | |
| 0.00 | 1.19 | 0.00 | 0.75 | 12.04 | 49.10 | -35.84 | 70.17 | 0.6111 | 873.0 | 705.6 | |
| 1.54 | 6.57 | 0.96 | 4.11 | 12.19 | 48.86 | -36.09 | 70.04 | 0.6149 | 704.4 | 591.8 | |
| 0.00 | 0.85 | 0.00 | 0.58 | 21.46 | 46.55 | -38.39 | 57.80 | 0.6854 | 664.0 | 500.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
