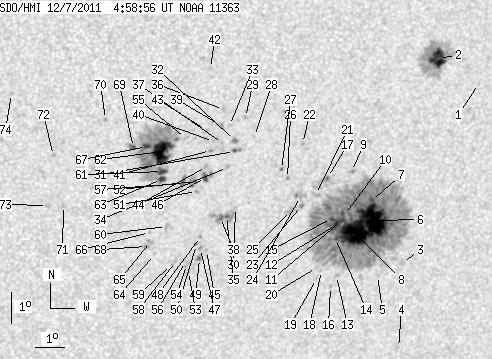

SDO HMI 2011-12-07 04:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 173.06 | 1000.81 | 100.62 | 582.75 | -21.97 | 107.61 | 23.21 | 223.94 | 0.5273 | 257.0 | 184.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-07 04:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.02 | 0.00 | 0.61 | -18.34 | 112.45 | 28.05 | 234.63 | 0.5495 | 358.0 | 392.8 | |
| 17.40 | 77.53 | 10.11 | 45.02 | -17.56 | 110.92 | 26.52 | 234.48 | 0.5251 | 1157.6 | 452.1 | |
| 0.00 | 2.64 | 0.00 | 1.60 | -24.02 | 110.87 | 26.47 | 224.86 | 0.5794 | -229.0 | -226.5 | |
| 0.00 | 0.60 | 0.00 | 0.37 | -26.81 | 111.40 | 27.00 | 221.81 | 0.6100 | 611.0 | 516.7 | |
| 0.00 | 1.02 | 0.00 | 0.62 | -24.44 | 110.06 | 25.66 | 223.48 | 0.5753 | 495.0 | 385.0 | |
| 49.73 | 619.50 | 29.52 | 366.80 | -22.67 | 109.55 | 25.15 | 225.35 | 0.5535 | 1302.7 | 438.0 | |
| 1.71 | -6.00 | 1.01 | -6.00 | -22.03 | 109.36 | 24.96 | 226.05 | 0.5455 | 1248.8 | 999999 | |
| 46.57 | -6.00 | 27.60 | -6.00 | -23.08 | 108.96 | 24.56 | 224.13 | 0.5513 | 1266.3 | 999999 | |
| 0.00 | 2.56 | 0.00 | 1.49 | -21.10 | 108.49 | 24.09 | 226.44 | 0.5276 | 860.0 | 675.2 | |
| 0.94 | -6.00 | 0.55 | -6.00 | -22.47 | 108.49 | 24.09 | 224.46 | 0.5407 | 1154.0 | 999999 | |
| 1.02 | -6.00 | 0.60 | -6.00 | -22.67 | 108.42 | 24.02 | 224.12 | 0.5418 | 1383.8 | 999999 | |
| 2.81 | -6.00 | 1.66 | -6.00 | -22.79 | 108.27 | 23.87 | 223.77 | 0.5415 | 1269.2 | 999999 | |
| 0.00 | 1.79 | 0.00 | 1.07 | -24.44 | 108.59 | 24.19 | 221.90 | 0.5609 | 540.0 | 420.4 | |
| 0.94 | -6.00 | 0.55 | -6.00 | -23.24 | 108.32 | 23.92 | 223.20 | 0.5464 | 870.7 | 999999 | |
| 0.68 | -6.00 | 0.40 | -6.00 | -22.60 | 108.06 | 23.66 | 223.80 | 0.5375 | 1207.8 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.82 | -24.80 | 108.45 | 24.05 | 221.28 | 0.5631 | 164.0 | 185.6 | |
| 0.85 | 12.71 | 0.49 | 7.37 | -21.29 | 107.69 | 23.29 | 225.25 | 0.5209 | -476.0 | 308.4 | |
| 0.00 | 0.85 | 0.00 | 0.51 | -24.28 | 108.03 | 23.63 | 221.48 | 0.5538 | 403.0 | 286.5 | |
| 0.00 | 1.45 | 0.00 | 0.86 | -24.54 | 107.90 | 23.50 | 221.00 | 0.5552 | 243.0 | 220.2 | |
| 0.00 | 1.02 | 0.00 | 0.61 | -24.18 | 107.83 | 23.43 | 221.39 | 0.5509 | 181.0 | 117.7 | |
| 0.00 | 3.92 | 0.00 | 2.28 | -21.83 | 107.37 | 22.97 | 224.09 | 0.5228 | 438.0 | 469.8 | |
| 0.00 | 1.45 | 0.00 | 0.83 | -20.21 | 106.66 | 22.26 | 225.64 | 0.4993 | -662.0 | -587.9 | |
| 0.00 | 1.88 | 0.00 | 1.09 | -22.18 | 106.94 | 22.54 | 223.08 | 0.5219 | 895.0 | 734.0 | |
| 0.00 | 6.48 | 0.00 | 3.75 | -21.90 | 106.86 | 22.46 | 223.39 | 0.5182 | -185.0 | -167.1 | |
| 0.00 | 6.23 | 0.00 | 3.60 | -22.34 | 106.59 | 22.19 | 222.43 | 0.5199 | 166.0 | 207.9 | |
| 0.00 | 0.85 | 0.00 | 0.49 | -21.32 | 106.32 | 21.92 | 223.56 | 0.5068 | -777.0 | -654.9 | |
| 0.43 | 1.28 | 0.24 | 0.73 | -21.04 | 106.07 | 21.67 | 223.67 | 0.5012 | 663.6 | 576.0 | |
| 0.00 | 0.94 | 0.00 | 0.53 | -19.99 | 105.01 | 20.61 | 223.87 | 0.4792 | -767.0 | -566.2 | |
| 0.00 | 1.19 | 0.00 | 0.67 | -19.39 | 104.62 | 20.23 | 224.29 | 0.4689 | -827.0 | -641.1 | |
| 0.00 | 0.94 | 0.00 | 0.54 | -22.24 | 104.69 | 20.29 | 220.14 | 0.5000 | -593.0 | -494.5 | |
| 1.28 | 3.41 | 0.72 | 1.92 | -20.46 | 104.40 | 20.00 | 222.33 | 0.4778 | -726.1 | -666.5 | |
| 1.45 | 2.81 | 0.81 | 1.58 | -20.12 | 104.35 | 19.95 | 222.79 | 0.4736 | -882.5 | -748.6 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -19.64 | 104.12 | 19.72 | 223.21 | 0.4662 | -619.0 | -417.6 | |
| 0.00 | 1.19 | 0.00 | 0.67 | -20.97 | 104.23 | 19.83 | 221.35 | 0.4816 | -770.0 | -646.1 | |
| 0.85 | 19.36 | 0.49 | 11.06 | -22.53 | 104.43 | 20.03 | 219.39 | 0.5006 | -681.2 | -473.3 | |
| 0.00 | 1.71 | 0.00 | 0.95 | -19.14 | 103.86 | 19.46 | 223.64 | 0.4580 | -883.0 | -678.5 | |
| 0.00 | 0.94 | 0.00 | 0.53 | -20.21 | 103.96 | 19.56 | 222.11 | 0.4706 | -760.0 | -586.5 | |
| 1.88 | -35.00 | 1.07 | -35.00 | -22.56 | 104.23 | 19.83 | 219.07 | 0.4990 | -813.1 | 999999 | |
| 0.00 | 3.50 | 0.00 | 1.95 | -19.64 | 103.82 | 19.42 | 222.79 | 0.4630 | -859.0 | -705.7 | |
| 0.00 | 1.28 | 0.00 | 0.72 | -20.15 | 103.65 | 19.26 | 221.77 | 0.4667 | -811.0 | -680.1 | |
| 0.00 | 1.11 | 0.00 | 0.62 | -20.43 | 103.59 | 19.19 | 221.25 | 0.4692 | -846.0 | -764.0 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -17.86 | 103.28 | 18.88 | 224.91 | 0.4382 | -775.0 | -551.7 | |
| 0.00 | 0.94 | 0.00 | 0.52 | -19.80 | 103.38 | 18.98 | 221.91 | 0.4601 | -927.0 | -735.5 | |
| 0.00 | 2.64 | 0.00 | 1.49 | -20.94 | 103.52 | 19.13 | 220.40 | 0.4741 | -884.0 | -753.6 | |
| 0.00 | 0.94 | 0.00 | 0.54 | -23.62 | 103.91 | 19.51 | 217.22 | 0.5080 | -685.0 | -572.7 | |
| 3.07 | 7.08 | 1.73 | 3.99 | -21.29 | 103.54 | 19.14 | 219.91 | 0.4781 | -917.1 | -721.0 | |
| 0.00 | 1.88 | 0.00 | 1.08 | -23.56 | 103.70 | 19.30 | 217.01 | 0.5053 | -889.0 | -691.1 | |
| 0.00 | 1.02 | 0.00 | 0.58 | -23.17 | 103.64 | 19.24 | 217.44 | 0.5003 | -832.0 | -686.7 | |
| 1.54 | 2.39 | 0.88 | 1.37 | -23.88 | 103.71 | 19.31 | 216.62 | 0.5091 | -744.9 | -587.8 | |
| 0.00 | 1.28 | 0.00 | 0.73 | -23.43 | 103.54 | 19.14 | 216.97 | 0.5024 | -872.0 | -734.2 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -21.73 | 103.30 | 18.90 | 218.93 | 0.4807 | -615.0 | -468.4 | |
| 1.02 | 7.08 | 0.58 | 3.98 | -21.41 | 103.19 | 18.79 | 219.23 | 0.4761 | -863.2 | -772.0 | |
| 0.00 | 1.96 | 0.00 | 1.13 | -24.30 | 103.40 | 19.00 | 215.65 | 0.5112 | -311.0 | -284.8 | |
| 0.00 | 3.41 | 0.00 | 1.96 | -24.08 | 103.30 | 18.90 | 215.80 | 0.5076 | -482.0 | -545.7 | |
| 0.00 | 2.22 | 0.00 | 1.23 | -20.05 | 102.71 | 18.31 | 220.54 | 0.4560 | -808.0 | -617.2 | |
| 0.00 | 0.77 | 0.00 | 0.44 | -23.98 | 103.25 | 18.85 | 215.85 | 0.5061 | -795.0 | -625.0 | |
| 0.00 | 6.82 | 0.00 | 3.83 | -21.48 | 102.79 | 18.39 | 218.57 | 0.4730 | -870.0 | -714.8 | |
| 0.00 | 0.94 | 0.00 | 0.54 | -23.98 | 102.91 | 18.51 | 215.37 | 0.5031 | -633.0 | -539.2 | |
| 0.00 | 0.43 | 0.00 | 0.24 | -24.07 | 102.79 | 18.39 | 215.08 | 0.5031 | -436.0 | -367.0 | |
| 0.00 | 2.30 | 0.00 | 1.30 | -22.85 | 102.44 | 18.04 | 216.16 | 0.4856 | -749.0 | -641.9 | |
| 4.69 | 147.65 | 2.62 | 81.88 | -21.09 | 102.08 | 17.68 | 218.04 | 0.4617 | -845.8 | -544.2 | |
| 25.67 | -61.00 | 14.25 | -61.00 | -20.46 | 101.97 | 17.57 | 218.80 | 0.4532 | -1203.3 | 999999 | |
| 3.41 | -61.00 | 1.91 | -61.00 | -21.35 | 102.07 | 17.68 | 217.68 | 0.4646 | -645.9 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.49 | -23.75 | 102.16 | 17.76 | 214.59 | 0.4939 | -634.0 | -509.7 | |
| 0.00 | 3.24 | 0.00 | 1.84 | -23.33 | 101.97 | 17.57 | 214.84 | 0.4872 | -784.0 | -646.6 | |
| 0.00 | 1.02 | 0.00 | 0.58 | -23.04 | 101.89 | 17.49 | 215.10 | 0.4830 | -797.0 | -600.1 | |
| 3.67 | -61.00 | 2.03 | -61.00 | -20.30 | 101.45 | 17.05 | 218.23 | 0.4464 | -1164.4 | 999999 | |
| 0.00 | 2.47 | 0.00 | 1.40 | -23.49 | 101.85 | 17.45 | 214.47 | 0.4881 | -760.0 | -685.2 | |
| 1.45 | 4.78 | 0.80 | 2.63 | -20.33 | 101.03 | 16.63 | 217.50 | 0.4427 | -983.5 | -801.0 | |
| 0.00 | 1.02 | 0.00 | 0.56 | -19.45 | 100.02 | 15.62 | 217.14 | 0.4224 | -945.0 | -795.2 | |
| 0.00 | 1.79 | 0.00 | 0.99 | -22.17 | 98.92 | 14.53 | 211.46 | 0.4469 | -677.0 | -516.2 | |
| 0.00 | 1.54 | 0.00 | 0.84 | -20.58 | 98.44 | 14.04 | 212.70 | 0.4222 | -819.0 | -596.2 | |
| 0.00 | 2.39 | 0.00 | 1.32 | -22.17 | 98.40 | 14.00 | 210.55 | 0.4426 | -614.0 | -567.6 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -18.63 | 96.92 | 12.52 | 212.55 | 0.3835 | -784.0 | -675.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
