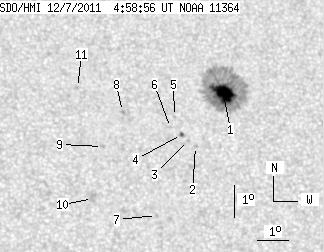

SDO HMI 2011-12-07 04:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.73 | 159.06 | 13.67 | 87.85 | 18.62 | 103.23 | 18.83 | 316.05 | 0.4424 | -505.0 | -281.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-07 04:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.37 | 144.41 | 12.93 | 79.97 | 18.79 | 103.52 | 19.12 | 315.89 | 0.4474 | -1314.9 | -368.0 | |
| 0.00 | 0.85 | 0.00 | 0.46 | 17.15 | 102.42 | 18.02 | 314.70 | 0.4177 | 742.0 | 660.5 | |
| 0.00 | 0.85 | 0.00 | 0.46 | 17.33 | 102.21 | 17.81 | 315.35 | 0.4174 | 674.0 | 497.3 | |
| 1.36 | 1.45 | 0.74 | 0.79 | 17.52 | 102.00 | 17.61 | 316.00 | 0.4171 | 501.1 | 779.0 | |
| 0.00 | 0.68 | 0.00 | 0.37 | 18.07 | 101.83 | 17.43 | 317.24 | 0.4213 | -579.0 | -349.2 | |
| 0.00 | 1.19 | 0.00 | 0.65 | 17.73 | 101.67 | 17.27 | 316.92 | 0.4158 | 467.0 | 441.4 | |
| 0.00 | 1.19 | 0.00 | 0.64 | 15.03 | 100.97 | 16.58 | 313.00 | 0.3784 | 804.0 | 667.1 | |
| 0.00 | 1.02 | 0.00 | 0.55 | 18.23 | 100.16 | 15.76 | 320.28 | 0.4055 | 784.0 | 606.2 | |
| 0.00 | 1.45 | 0.00 | 0.78 | 17.15 | 99.42 | 15.02 | 319.74 | 0.3850 | 773.0 | 603.5 | |
| 0.00 | 4.69 | 0.00 | 2.49 | 15.55 | 98.98 | 14.58 | 317.61 | 0.3614 | 694.0 | 565.7 | |
| 0.00 | 1.28 | 0.00 | 0.69 | 18.98 | 98.78 | 14.38 | 323.98 | 0.4010 | 823.0 | 571.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
