SDO HMI 2011-12-07 05:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.96 | 14.24 | 1.03 | 7.69 | -21.59 | 75.86 | -8.00 | 161.11 | 0.3934 | -451.3 | -301.6 | |
|
previous
or next observation for the same group /

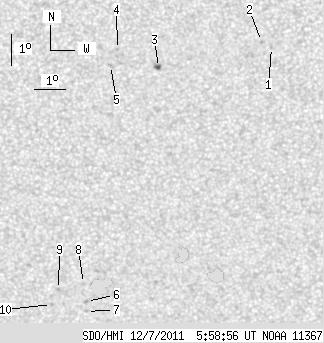

back to the solar disc SDO HMI 2011-12-07 05:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.71 | -17.89 | 80.45 | -3.40 | 169.66 | 0.3159 | 741.0 | 618.8 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -17.70 | 80.15 | -3.71 | 168.63 | 0.3138 | 915.0 | 690.1 | |
| 1.96 | 2.30 | 1.03 | 1.21 | -18.51 | 76.91 | -6.95 | 160.26 | 0.3411 | -976.7 | -931.4 | |
| 0.00 | 0.94 | 0.00 | 0.49 | -17.95 | 75.65 | -8.21 | 156.37 | 0.3403 | -848.0 | -572.5 | |
| 0.00 | 2.13 | 0.00 | 1.13 | -18.45 | 75.40 | -8.45 | 156.37 | 0.3494 | -883.0 | -597.5 | |
| 0.00 | 1.54 | 0.00 | 0.86 | -26.00 | 74.13 | -9.73 | 160.98 | 0.4678 | -804.0 | -667.6 | |
| 0.00 | 1.19 | 0.00 | 0.67 | -26.33 | 74.10 | -9.75 | 161.18 | 0.4727 | -676.0 | -476.6 | |
| 0.00 | 1.11 | 0.00 | 0.62 | -25.41 | 74.08 | -9.78 | 160.42 | 0.4595 | -620.0 | -475.6 | |
| 0.00 | 1.11 | 0.00 | 0.62 | -25.60 | 73.23 | -10.62 | 159.05 | 0.4669 | -830.0 | -639.6 | |
| 0.00 | 1.11 | 0.00 | 0.62 | -26.10 | 72.95 | -10.90 | 158.97 | 0.4754 | -516.0 | -423.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
