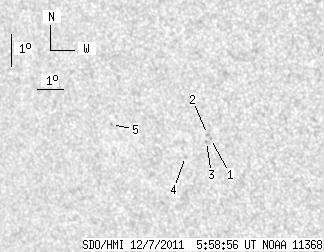

SDO HMI 2011-12-07 05:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.62 | 0.00 | 3.58 | -15.70 | 47.75 | -36.10 | 115.68 | 0.6315 | 427.0 | 383.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-07 05:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.02 | 0.00 | 0.64 | -15.64 | 48.64 | -35.21 | 116.05 | 0.6203 | 815.0 | 597.2 | |
| 0.00 | 1.28 | 0.00 | 0.81 | -15.52 | 48.56 | -35.30 | 115.82 | 0.6208 | 881.0 | 717.5 | |
| 0.00 | 1.11 | 0.00 | 0.70 | -15.73 | 48.48 | -35.38 | 116.10 | 0.6228 | 453.0 | 485.8 | |
| 0.00 | 1.36 | 0.00 | 0.87 | -16.20 | 47.58 | -36.27 | 116.30 | 0.6360 | 585.0 | 423.8 | |
| 0.00 | 0.85 | 0.00 | 0.56 | -15.22 | 44.92 | -38.93 | 113.55 | 0.6638 | -599.0 | -532.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
