SDO HMI 2011-12-07 06:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.62 | 8.71 | 0.85 | 4.71 | -22.14 | 75.64 | -7.67 | 162.25 | 0.3993 | -410.5 | -480.4 | |
|
previous
or next observation for the same group /

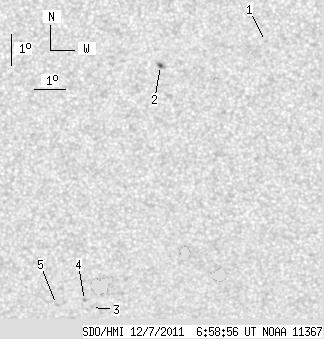

back to the solar disc SDO HMI 2011-12-07 06:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.77 | 0.00 | 0.40 | -17.74 | 80.19 | -3.12 | 170.42 | 0.3126 | 892.0 | 740.2 | |
| 1.62 | 3.84 | 0.85 | 2.02 | -18.49 | 76.90 | -6.41 | 161.65 | 0.3378 | -963.2 | -748.6 | |
| 0.00 | 1.11 | 0.00 | 0.62 | -26.24 | 74.23 | -9.08 | 162.33 | 0.4680 | -556.0 | -515.0 | |
| 0.00 | 1.54 | 0.00 | 0.86 | -26.01 | 74.02 | -9.29 | 161.77 | 0.4657 | -814.0 | -628.2 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -26.14 | 73.07 | -10.24 | 160.18 | 0.4723 | -694.0 | -514.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
