SDO HMI 2011-12-07 07:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.96 | 10.66 | 1.20 | 6.52 | 12.86 | 48.78 | -33.98 | 68.04 | 0.5907 | 603.1 | 560.9 | |
|
previous
or next observation for the same group /

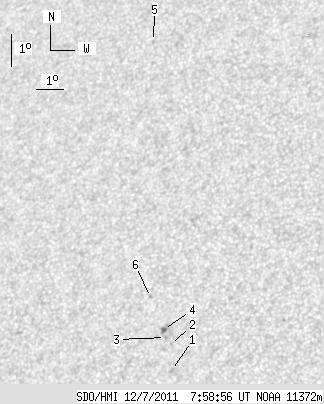

back to the solar disc SDO HMI 2011-12-07 07:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.22 | 0.00 | 1.34 | 11.15 | 49.36 | -33.40 | 70.47 | 0.5753 | 663.0 | 545.6 | |
| 0.00 | 0.43 | 0.00 | 0.26 | 11.93 | 49.22 | -33.55 | 69.23 | 0.5805 | 692.0 | 606.8 | |
| 0.00 | 1.02 | 0.00 | 0.62 | 12.14 | 49.01 | -33.76 | 68.99 | 0.5842 | 648.0 | 611.0 | |
| 1.96 | 5.20 | 1.20 | 3.17 | 12.38 | 48.90 | -33.87 | 68.65 | 0.5866 | 720.2 | 653.4 | |
| 0.00 | 0.77 | 0.00 | 0.50 | 21.28 | 46.62 | -36.14 | 56.67 | 0.6601 | 152.0 | 123.0 | |
| 0.00 | 1.02 | 0.00 | 0.63 | 13.35 | 48.27 | -34.49 | 67.41 | 0.5991 | 720.0 | 585.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
