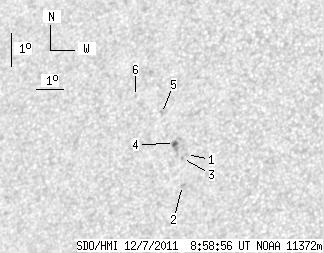

SDO HMI 2011-12-07 08:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.96 | 10.14 | 1.19 | 6.16 | 12.35 | 48.88 | -33.34 | 68.45 | 0.5796 | 665.7 | 579.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-07 08:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.19 | 0.00 | 0.72 | 12.08 | 49.38 | -32.84 | 68.62 | 0.5717 | 583.0 | 438.1 | |
| 0.00 | 1.54 | 0.00 | 0.92 | 11.14 | 49.36 | -32.86 | 70.21 | 0.5680 | 755.0 | 629.1 | |
| 0.00 | 1.02 | 0.00 | 0.62 | 11.96 | 49.25 | -32.97 | 68.89 | 0.5729 | 667.0 | 609.5 | |
| 1.96 | 4.43 | 1.19 | 2.69 | 12.41 | 48.90 | -33.32 | 68.32 | 0.5796 | 704.6 | 652.4 | |
| 0.00 | 1.36 | 0.00 | 0.84 | 13.32 | 48.28 | -33.93 | 67.17 | 0.5917 | 714.0 | 559.1 | |
| 0.00 | 0.60 | 0.00 | 0.37 | 13.83 | 47.24 | -34.98 | 66.89 | 0.6075 | 563.0 | 425.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
