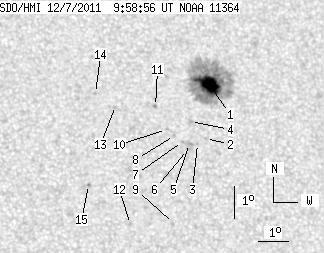

SDO HMI 2011-12-07 09:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.00 | 159.97 | 12.39 | 89.97 | 18.60 | 103.35 | 21.68 | 312.17 | 0.4743 | -317.5 | -288.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-07 09:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.00 | 143.01 | 12.39 | 80.61 | 18.79 | 103.52 | 21.85 | 312.28 | 0.4781 | -1313.2 | -385.8 | |
| 0.00 | 1.02 | 0.00 | 0.57 | 17.11 | 103.17 | 21.49 | 309.87 | 0.4582 | 469.0 | 409.5 | |
| 0.00 | 0.94 | 0.00 | 0.52 | 16.96 | 102.88 | 21.21 | 309.96 | 0.4534 | 635.0 | 451.9 | |
| 0.00 | 2.56 | 0.00 | 1.42 | 17.64 | 102.73 | 21.06 | 311.34 | 0.4580 | 130.0 | 162.5 | |
| 0.00 | 2.39 | 0.00 | 1.32 | 16.96 | 102.62 | 20.95 | 310.29 | 0.4502 | 738.0 | 602.9 | |
| 0.00 | 1.62 | 0.00 | 0.90 | 16.77 | 102.53 | 20.86 | 310.08 | 0.4474 | 667.0 | 549.1 | |
| 0.00 | 0.77 | 0.00 | 0.42 | 17.02 | 102.39 | 20.72 | 310.70 | 0.4481 | 769.0 | 621.4 | |
| 0.00 | 1.02 | 0.00 | 0.57 | 17.20 | 102.15 | 20.48 | 311.34 | 0.4470 | 677.0 | 578.2 | |
| 0.00 | 1.02 | 0.00 | 0.56 | 14.50 | 101.83 | 20.16 | 306.70 | 0.4179 | 755.0 | 603.6 | |
| 0.00 | 0.77 | 0.00 | 0.42 | 17.39 | 101.91 | 20.24 | 311.99 | 0.4460 | 679.0 | 563.8 | |
| 0.00 | 1.36 | 0.00 | 0.76 | 18.10 | 101.63 | 19.96 | 313.61 | 0.4499 | -696.0 | -536.9 | |
| 0.00 | 0.85 | 0.00 | 0.46 | 14.47 | 100.44 | 18.77 | 308.54 | 0.4000 | 866.0 | 658.3 | |
| 0.00 | 0.85 | 0.00 | 0.47 | 18.13 | 100.32 | 18.64 | 315.53 | 0.4355 | 535.0 | 504.7 | |
| 0.00 | 0.68 | 0.00 | 0.37 | 18.51 | 99.70 | 18.03 | 317.09 | 0.4329 | 783.0 | 613.1 | |
| 0.00 | 1.11 | 0.00 | 0.60 | 15.70 | 99.20 | 17.52 | 312.84 | 0.3970 | 885.0 | 726.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
