SDO HMI 2011-12-07 10:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 168.07 | 986.31 | 100.69 | 590.08 | -22.14 | 107.72 | 26.59 | 227.45 | 0.5638 | 333.1 | 191.5 | |
|
previous
or next observation for the same group /

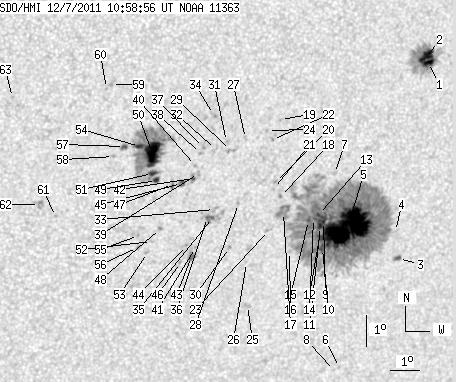

back to the solar disc SDO HMI 2011-12-07 10:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.03 | 65.83 | 3.02 | 39.39 | -17.66 | 111.00 | 29.87 | 237.28 | 0.5663 | 983.8 | 500.4 | |
| 8.87 | -1.00 | 5.31 | -1.00 | -17.44 | 110.92 | 29.80 | 237.56 | 0.5639 | 1175.0 | 999999 | |
| 2.05 | 3.50 | 1.28 | 2.19 | -23.86 | 111.27 | 30.14 | 228.51 | 0.6153 | -759.8 | -695.2 | |
| 0.00 | 1.11 | 0.00 | 0.69 | -22.99 | 110.94 | 29.81 | 229.41 | 0.6049 | -142.0 | -116.4 | |
| 102.66 | 673.46 | 62.56 | 409.05 | -22.86 | 109.14 | 28.02 | 227.98 | 0.5849 | 1223.3 | 390.2 | |
| 0.00 | 0.85 | 0.00 | 0.54 | -27.44 | 110.02 | 28.89 | 222.85 | 0.6328 | 487.0 | 360.8 | |
| 0.00 | 1.62 | 0.00 | 0.97 | -21.14 | 108.31 | 27.18 | 229.64 | 0.5614 | 677.0 | 493.7 | |
| 0.00 | 0.26 | 0.00 | 0.16 | -27.54 | 109.86 | 28.73 | 222.58 | 0.6322 | 565.0 | 466.0 | |
| 1.28 | -5.00 | 0.77 | -5.00 | -22.67 | 108.23 | 27.11 | 227.38 | 0.5736 | 1256.1 | 999999 | |
| 3.92 | -5.00 | 2.39 | -5.00 | -23.54 | 108.39 | 27.26 | 226.33 | 0.5828 | 573.5 | 999999 | |
| 2.13 | -5.00 | 1.29 | -5.00 | -22.83 | 108.16 | 27.03 | 227.08 | 0.5742 | 1119.0 | 999999 | |
| 1.02 | -5.00 | 0.62 | -5.00 | -23.15 | 108.19 | 27.07 | 226.67 | 0.5774 | 914.2 | 999999 | |
| 1.45 | -5.00 | 0.87 | -5.00 | -22.44 | 108.01 | 26.88 | 227.47 | 0.5692 | 1174.9 | 999999 | |
| 0.51 | -5.00 | 0.31 | -5.00 | -22.57 | 107.85 | 26.73 | 227.14 | 0.5688 | 1179.3 | 999999 | |
| 1.45 | -5.00 | 0.87 | -5.00 | -22.63 | 107.69 | 26.56 | 226.89 | 0.5676 | 958.2 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.77 | -23.63 | 107.22 | 26.09 | 225.04 | 0.5716 | 125.0 | 105.1 | |
| 0.00 | 13.64 | 0.00 | 8.11 | -22.38 | 106.74 | 25.62 | 226.29 | 0.5553 | 614.0 | 495.1 | |
| 0.00 | 1.19 | 0.00 | 0.71 | -21.87 | 106.54 | 25.41 | 226.80 | 0.5485 | -566.0 | -431.4 | |
| 0.00 | 0.94 | 0.00 | 0.54 | -19.43 | 106.10 | 24.98 | 229.99 | 0.5220 | -742.0 | -648.8 | |
| 0.00 | 1.79 | 0.00 | 1.05 | -21.39 | 106.27 | 25.15 | 227.21 | 0.5413 | -607.0 | -383.0 | |
| 0.00 | 1.28 | 0.00 | 0.75 | -21.61 | 106.24 | 25.12 | 226.86 | 0.5430 | -596.0 | -382.6 | |
| 0.00 | 1.28 | 0.00 | 0.74 | -20.06 | 105.93 | 24.81 | 228.83 | 0.5256 | -685.0 | -580.9 | |
| 0.00 | 2.13 | 0.00 | 1.27 | -22.95 | 106.33 | 25.20 | 225.04 | 0.5563 | -576.0 | -361.6 | |
| 0.00 | 1.28 | 0.00 | 0.74 | -19.78 | 105.71 | 24.59 | 229.03 | 0.5206 | -679.0 | -498.5 | |
| 0.00 | 2.73 | 0.00 | 1.65 | -25.38 | 106.09 | 24.96 | 221.55 | 0.5771 | 534.0 | 575.8 | |
| 0.00 | 0.26 | 0.00 | 0.15 | -23.98 | 105.75 | 24.63 | 223.02 | 0.5603 | 614.0 | 523.3 | |
| 0.00 | 2.13 | 0.00 | 1.23 | -20.03 | 104.99 | 23.87 | 227.85 | 0.5148 | -735.0 | -534.1 | |
| 0.00 | 1.36 | 0.00 | 0.80 | -22.09 | 105.11 | 23.98 | 224.92 | 0.5354 | -719.0 | -566.1 | |
| 0.00 | 3.15 | 0.00 | 1.82 | -20.40 | 104.54 | 23.41 | 226.76 | 0.5133 | -806.0 | -633.9 | |
| 0.00 | 1.71 | 0.00 | 1.01 | -23.50 | 105.05 | 23.93 | 222.90 | 0.5486 | 592.0 | 416.2 | |
| 0.00 | 0.68 | 0.00 | 0.39 | -20.12 | 104.36 | 23.23 | 226.98 | 0.5086 | -625.0 | -525.2 | |
| 0.00 | 2.81 | 0.00 | 1.61 | -20.37 | 104.02 | 22.89 | 226.20 | 0.5073 | -514.0 | -482.8 | |
| 0.00 | 3.07 | 0.00 | 1.79 | -22.28 | 104.30 | 23.18 | 223.73 | 0.5290 | -628.0 | -579.1 | |
| 0.00 | 2.13 | 0.00 | 1.21 | -19.27 | 103.78 | 22.66 | 227.63 | 0.4942 | -582.0 | -445.5 | |
| 1.11 | 14.24 | 0.65 | 8.31 | -22.53 | 104.28 | 23.15 | 223.34 | 0.5312 | -631.9 | -374.5 | |
| 1.45 | -35.00 | 0.84 | -35.00 | -22.53 | 104.11 | 22.98 | 223.14 | 0.5295 | -779.9 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.59 | -20.31 | 103.60 | 22.47 | 225.79 | 0.5022 | -924.0 | -760.8 | |
| 0.00 | 1.45 | 0.00 | 0.83 | -20.50 | 103.53 | 22.40 | 225.42 | 0.5032 | -782.0 | -608.4 | |
| 0.00 | 2.05 | 0.00 | 1.18 | -21.13 | 103.56 | 22.43 | 224.51 | 0.5098 | -748.0 | -620.1 | |
| 0.00 | 1.19 | 0.00 | 0.68 | -20.88 | 103.42 | 22.29 | 224.71 | 0.5058 | -728.0 | -568.1 | |
| 0.00 | 0.94 | 0.00 | 0.55 | -23.50 | 103.86 | 22.73 | 221.52 | 0.5368 | -676.0 | -549.3 | |
| 1.28 | 3.67 | 0.74 | 2.11 | -21.29 | 103.41 | 22.29 | 224.10 | 0.5099 | -893.9 | -687.2 | |
| 0.00 | 5.37 | 0.00 | 3.15 | -23.79 | 103.77 | 22.65 | 221.03 | 0.5389 | -774.0 | -643.9 | |
| 0.00 | 1.11 | 0.00 | 0.65 | -23.43 | 103.53 | 22.41 | 221.22 | 0.5329 | -836.0 | -620.2 | |
| 0.00 | 3.84 | 0.00 | 2.20 | -21.45 | 103.03 | 21.90 | 223.39 | 0.5074 | -959.0 | -820.1 | |
| 0.00 | 1.45 | 0.00 | 0.85 | -23.98 | 103.42 | 22.30 | 220.35 | 0.5375 | -697.0 | -526.6 | |
| 0.00 | 2.81 | 0.00 | 1.61 | -21.48 | 102.72 | 21.60 | 222.96 | 0.5046 | -847.0 | -716.7 | |
| 0.00 | 1.96 | 0.00 | 1.13 | -22.88 | 102.54 | 21.41 | 220.74 | 0.5174 | -757.0 | -635.2 | |
| 2.56 | 133.02 | 1.46 | 75.22 | -21.35 | 102.16 | 21.03 | 222.43 | 0.4975 | -697.3 | -578.7 | |
| 23.88 | -49.00 | 13.51 | -49.00 | -20.49 | 101.90 | 20.77 | 223.36 | 0.4858 | -1179.1 | 999999 | |
| 3.07 | -49.00 | 1.75 | -49.00 | -21.13 | 101.99 | 20.86 | 222.54 | 0.4934 | -862.2 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.64 | -23.30 | 102.30 | 21.17 | 219.87 | 0.5196 | -719.0 | -538.9 | |
| 0.00 | 1.88 | 0.00 | 1.09 | -23.66 | 102.22 | 21.09 | 219.29 | 0.5226 | -612.0 | -541.4 | |
| 3.07 | -49.00 | 1.73 | -49.00 | -20.27 | 101.43 | 20.30 | 223.07 | 0.4786 | -1115.8 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.59 | -23.11 | 101.82 | 20.69 | 219.51 | 0.5129 | -729.0 | -607.8 | |
| 0.00 | 2.05 | 0.00 | 1.18 | -23.49 | 101.85 | 20.72 | 219.03 | 0.5174 | -753.0 | -620.0 | |
| 1.28 | 3.41 | 0.72 | 1.92 | -20.27 | 100.93 | 19.80 | 222.39 | 0.4733 | -1013.4 | -838.2 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -20.59 | 100.60 | 19.47 | 221.46 | 0.4734 | -816.0 | -674.7 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -18.33 | 100.25 | 19.13 | 224.53 | 0.4454 | -850.0 | -738.7 | |
| 0.00 | 0.85 | 0.00 | 0.47 | -18.45 | 100.10 | 18.98 | 224.11 | 0.4451 | -695.0 | -589.8 | |
| 0.00 | 1.28 | 0.00 | 0.72 | -22.49 | 98.91 | 17.78 | 216.30 | 0.4787 | -696.0 | -565.9 | |
| 0.00 | 5.29 | 0.00 | 2.96 | -22.11 | 98.33 | 17.20 | 215.93 | 0.4688 | -820.0 | -665.5 | |
| 0.00 | 1.11 | 0.00 | 0.60 | -18.73 | 97.06 | 15.93 | 218.84 | 0.4163 | -728.0 | -589.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
