SDO HMI 2011-12-07 10:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.40 | 21.90 | 4.46 | 15.65 | 18.68 | 123.83 | 42.70 | 296.61 | 0.7182 | 362.5 | 201.4 | |
|
previous
or next observation for the same group /

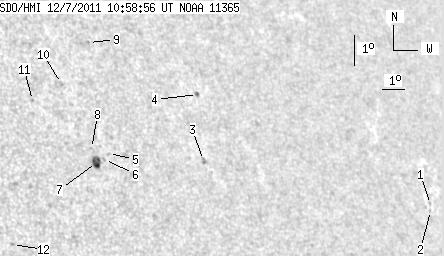

back to the solar disc SDO HMI 2011-12-07 10:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.94 | 0.00 | 0.86 | 17.01 | 136.90 | 55.77 | 290.23 | 0.8448 | 314.0 | 233.2 | |
| 0.00 | 0.68 | 0.00 | 0.63 | 16.82 | 136.82 | 55.69 | 290.04 | 0.8437 | 305.0 | 236.9 | |
| 0.00 | 2.13 | 0.00 | 1.58 | 18.37 | 126.30 | 45.17 | 295.01 | 0.7450 | -608.0 | -539.7 | |
| 0.94 | 1.88 | 0.71 | 1.42 | 20.44 | 126.77 | 45.65 | 297.45 | 0.7573 | -568.8 | -566.5 | |
| 0.00 | 1.02 | 0.00 | 0.71 | 18.59 | 122.29 | 41.17 | 296.97 | 0.7024 | 393.0 | 344.8 | |
| 0.00 | 1.53 | 0.00 | 1.06 | 18.41 | 122.07 | 40.95 | 296.82 | 0.6992 | 515.0 | 432.8 | |
| 5.46 | 8.10 | 3.75 | 5.56 | 18.31 | 121.72 | 40.59 | 296.86 | 0.6948 | 816.6 | 734.4 | |
| 0.00 | 1.11 | 0.00 | 0.76 | 18.75 | 121.64 | 40.51 | 297.49 | 0.6958 | 682.0 | 569.1 | |
| 0.00 | 0.77 | 0.00 | 0.55 | 22.09 | 122.60 | 41.47 | 301.42 | 0.7214 | 505.0 | 495.9 | |
| 0.00 | 1.53 | 0.00 | 1.06 | 20.79 | 121.02 | 39.90 | 300.53 | 0.6985 | 529.0 | 471.5 | |
| 0.00 | 1.02 | 0.00 | 0.69 | 20.26 | 119.67 | 38.55 | 300.53 | 0.6811 | 618.0 | 515.2 | |
| 0.00 | 1.19 | 0.00 | 0.77 | 15.78 | 117.76 | 36.63 | 295.22 | 0.6371 | -670.0 | -576.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
