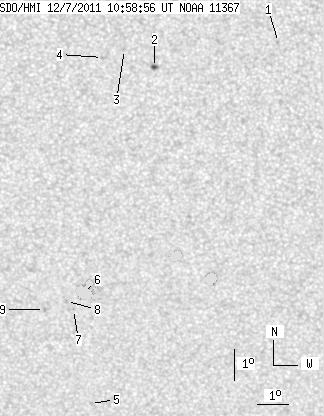

SDO HMI 2011-12-07 10:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.98 | 31.97 | 7.68 | 17.57 | -24.53 | 74.76 | -6.36 | 166.52 | 0.4303 | -774.8 | -656.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-07 10:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.85 | 0.00 | 0.44 | -17.70 | 80.83 | -0.29 | 179.08 | 0.3072 | 731.0 | 581.8 | |
| 2.13 | 2.73 | 1.12 | 1.43 | -18.48 | 76.97 | -4.16 | 167.82 | 0.3275 | -959.4 | -802.3 | |
| 0.00 | 0.85 | 0.00 | 0.45 | -17.92 | 76.05 | -5.08 | 164.77 | 0.3221 | -810.0 | -621.9 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -18.16 | 75.35 | -5.77 | 163.05 | 0.3292 | -674.0 | -597.8 | |
| 0.00 | 0.94 | 0.00 | 0.54 | -29.36 | 74.42 | -6.71 | 168.31 | 0.5045 | -679.0 | -471.9 | |
| 11.85 | 21.06 | 6.56 | 11.66 | -25.66 | 74.41 | -6.71 | 166.37 | 0.4492 | -1028.7 | -816.8 | |
| 0.00 | 1.11 | 0.00 | 0.62 | -26.22 | 74.05 | -7.08 | 166.00 | 0.4590 | -597.0 | -482.5 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -25.96 | 73.83 | -7.29 | 165.43 | 0.4559 | -794.0 | -650.9 | |
| 0.00 | 1.53 | 0.00 | 0.86 | -26.22 | 73.08 | -8.04 | 164.20 | 0.4628 | -729.0 | -605.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
