SDO HMI 2011-12-07 11:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 161.84 | 951.20 | 97.07 | 571.61 | -22.14 | 107.66 | 27.08 | 227.92 | 0.5689 | 289.5 | 212.8 | |
|
previous
or next observation for the same group /

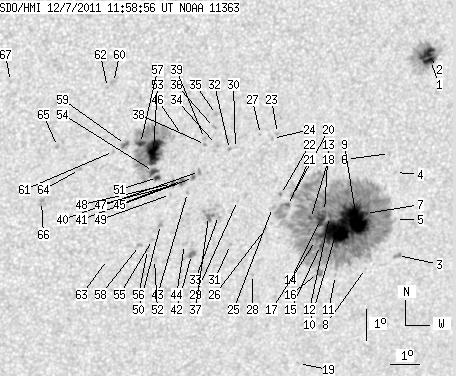

back to the solar disc SDO HMI 2011-12-07 11:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.12 | 57.04 | 3.09 | 34.31 | -17.66 | 111.06 | 30.48 | 237.75 | 0.5737 | 949.7 | 556.7 | |
| 9.81 | -1.00 | 5.90 | -1.00 | -17.45 | 110.91 | 30.33 | 237.98 | 0.5704 | 1153.3 | 999999 | |
| 0.00 | 3.67 | 0.00 | 2.31 | -23.83 | 111.23 | 30.65 | 228.99 | 0.6203 | -846.0 | -694.8 | |
| 0.00 | 1.11 | 0.00 | 0.68 | -21.17 | 110.51 | 29.93 | 232.06 | 0.5922 | -358.0 | -290.2 | |
| 0.00 | 1.02 | 0.00 | 0.64 | -22.67 | 110.86 | 30.28 | 230.25 | 0.6075 | -105.0 | -72.2 | |
| 0.00 | 1.11 | 0.00 | 0.67 | -20.57 | 110.16 | 29.58 | 232.64 | 0.5837 | -545.0 | -396.8 | |
| 2.05 | 668.28 | 1.26 | 407.49 | -22.48 | 109.71 | 29.13 | 229.53 | 0.5936 | 1075.7 | 407.6 | |
| 0.00 | 0.43 | 0.00 | 0.27 | -24.25 | 110.14 | 29.56 | 227.50 | 0.6124 | 281.0 | 246.4 | |
| 39.56 | -7.00 | 24.27 | -7.00 | -22.67 | 109.43 | 28.85 | 229.01 | 0.5921 | 1244.8 | 999999 | |
| 46.81 | -7.00 | 28.61 | -7.00 | -23.02 | 108.78 | 28.20 | 227.93 | 0.5881 | 1248.5 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.63 | -24.48 | 109.09 | 28.51 | 226.25 | 0.6036 | 508.0 | 362.7 | |
| 1.79 | -7.00 | 1.09 | -7.00 | -22.57 | 108.42 | 27.84 | 228.22 | 0.5806 | 1068.9 | 999999 | |
| 1.11 | -7.00 | 0.67 | -7.00 | -22.41 | 108.20 | 27.63 | 228.24 | 0.5769 | 1156.3 | 999999 | |
| 8.19 | -7.00 | 4.96 | -7.00 | -22.67 | 108.12 | 27.54 | 227.79 | 0.5781 | 1220.6 | 999999 | |
| 1.11 | -7.00 | 0.68 | -7.00 | -23.51 | 108.30 | 27.72 | 226.82 | 0.5873 | 578.9 | 999999 | |
| 0.00 | 5.54 | 0.00 | 3.41 | -24.41 | 108.41 | 27.83 | 225.70 | 0.5962 | 497.0 | 459.1 | |
| 0.43 | -7.00 | 0.26 | -7.00 | -23.34 | 108.09 | 27.51 | 226.83 | 0.5836 | 776.6 | 999999 | |
| 1.36 | -7.00 | 0.82 | -7.00 | -22.64 | 107.75 | 27.17 | 227.49 | 0.5740 | 1029.4 | 999999 | |
| 0.00 | 1.19 | 0.00 | 0.75 | -27.37 | 108.46 | 27.88 | 222.00 | 0.6230 | 665.0 | 512.1 | |
| 1.11 | -7.00 | 0.66 | -7.00 | -21.90 | 106.95 | 26.37 | 227.74 | 0.5591 | 413.5 | 999999 | |
| 1.36 | -7.00 | 0.81 | -7.00 | -22.22 | 106.84 | 26.26 | 227.17 | 0.5607 | 850.1 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.56 | -21.87 | 106.52 | 25.94 | 227.35 | 0.5541 | -544.0 | -439.1 | |
| 0.00 | 1.11 | 0.00 | 0.65 | -19.94 | 106.06 | 25.48 | 229.73 | 0.5321 | -686.0 | -554.6 | |
| 0.00 | 1.11 | 0.00 | 0.65 | -20.09 | 105.91 | 25.33 | 229.34 | 0.5318 | -708.0 | -572.7 | |
| 0.00 | 2.90 | 0.00 | 1.72 | -22.28 | 106.32 | 25.74 | 226.55 | 0.5557 | 124.0 | 178.3 | |
| 0.00 | 1.45 | 0.00 | 0.87 | -22.95 | 106.20 | 25.62 | 225.49 | 0.5606 | -577.0 | -479.2 | |
| 0.00 | 0.85 | 0.00 | 0.50 | -19.97 | 105.47 | 24.89 | 229.07 | 0.5257 | -612.0 | -518.7 | |
| 0.00 | 1.11 | 0.00 | 0.67 | -24.44 | 106.05 | 25.47 | 223.32 | 0.5730 | 635.0 | 523.6 | |
| 0.00 | 0.77 | 0.00 | 0.45 | -22.06 | 105.04 | 24.46 | 225.50 | 0.5402 | -361.0 | -380.3 | |
| 0.00 | 0.34 | 0.00 | 0.20 | -20.41 | 104.68 | 24.10 | 227.54 | 0.5209 | -444.0 | -456.0 | |
| 0.00 | 1.11 | 0.00 | 0.66 | -23.47 | 105.06 | 24.48 | 223.56 | 0.5538 | 611.0 | 457.5 | |
| 0.00 | 1.11 | 0.00 | 0.64 | -20.44 | 104.48 | 23.90 | 227.26 | 0.5189 | -865.0 | -704.8 | |
| 0.00 | 1.62 | 0.00 | 0.95 | -22.53 | 104.46 | 23.88 | 224.18 | 0.5387 | -275.0 | -265.8 | |
| 0.00 | 2.39 | 0.00 | 1.37 | -20.28 | 104.00 | 23.43 | 226.97 | 0.5123 | -523.0 | -461.9 | |
| 0.00 | 1.45 | 0.00 | 0.83 | -19.34 | 103.86 | 23.28 | 228.26 | 0.5018 | -850.0 | -649.1 | |
| 0.00 | 1.79 | 0.00 | 1.03 | -19.74 | 103.85 | 23.27 | 227.61 | 0.5055 | -905.0 | -727.4 | |
| 0.00 | 6.39 | 0.00 | 3.74 | -22.57 | 104.12 | 23.54 | 223.75 | 0.5355 | -797.0 | -683.9 | |
| 0.00 | 1.28 | 0.00 | 0.73 | -20.28 | 103.63 | 23.05 | 226.53 | 0.5081 | -936.0 | -806.2 | |
| 0.00 | 2.05 | 0.00 | 1.17 | -20.09 | 103.56 | 22.98 | 226.74 | 0.5056 | -644.0 | -514.1 | |
| 0.00 | 2.30 | 0.00 | 1.33 | -21.13 | 103.56 | 22.98 | 225.16 | 0.5156 | -724.0 | -625.9 | |
| 1.19 | 2.90 | 0.69 | 1.67 | -21.32 | 103.38 | 22.80 | 224.67 | 0.5156 | -883.9 | -736.0 | |
| 3.41 | 7.76 | 2.01 | 4.57 | -23.79 | 103.75 | 23.17 | 221.64 | 0.5440 | -660.1 | -550.8 | |
| 0.00 | 1.11 | 0.00 | 0.64 | -21.80 | 103.26 | 22.68 | 223.83 | 0.5190 | -677.0 | -496.5 | |
| 0.00 | 1.71 | 0.00 | 1.00 | -23.47 | 103.45 | 22.87 | 221.72 | 0.5377 | -672.0 | -552.2 | |
| 0.85 | 3.67 | 0.49 | 2.11 | -21.42 | 103.02 | 22.44 | 224.10 | 0.5127 | -1007.8 | -806.9 | |
| 0.00 | 1.02 | 0.00 | 0.58 | -19.99 | 102.80 | 22.22 | 225.97 | 0.4963 | -788.0 | -680.6 | |
| 0.34 | -45.00 | 0.20 | -45.00 | -21.51 | 102.97 | 22.39 | 223.90 | 0.5131 | -836.0 | 999999 | |
| 1.96 | 2.56 | 1.13 | 1.47 | -21.51 | 102.69 | 22.11 | 223.56 | 0.5103 | -669.3 | -671.0 | |
| 0.00 | 1.28 | 0.00 | 0.74 | -21.86 | 102.68 | 22.10 | 223.04 | 0.5137 | -666.0 | -513.5 | |
| 0.00 | 3.58 | 0.00 | 2.08 | -22.82 | 102.50 | 21.92 | 221.46 | 0.5217 | -865.0 | -629.6 | |
| 2.39 | 129.85 | 1.37 | 73.68 | -21.32 | 102.15 | 21.57 | 223.16 | 0.5027 | -671.1 | -573.8 | |
| 0.00 | 1.28 | 0.00 | 0.75 | -23.95 | 102.49 | 21.91 | 219.92 | 0.5334 | -548.0 | -442.2 | |
| 23.11 | -51.00 | 13.12 | -51.00 | -20.47 | 101.89 | 21.31 | 224.10 | 0.4912 | -1181.3 | 999999 | |
| 3.75 | -51.00 | 2.14 | -51.00 | -21.13 | 101.98 | 21.41 | 223.24 | 0.4990 | -865.5 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.59 | -23.30 | 102.30 | 21.72 | 220.56 | 0.5249 | -704.0 | -585.9 | |
| 0.00 | 2.22 | 0.00 | 1.29 | -23.62 | 102.19 | 21.61 | 219.98 | 0.5271 | -694.0 | -503.0 | |
| 3.92 | -51.00 | 2.22 | -51.00 | -20.24 | 101.41 | 20.84 | 223.83 | 0.4839 | -1116.3 | 999999 | |
| 0.00 | 2.56 | 0.00 | 1.48 | -23.50 | 101.89 | 21.31 | 219.78 | 0.5229 | -779.0 | -613.6 | |
| 1.11 | 4.52 | 0.62 | 2.55 | -20.27 | 100.91 | 20.33 | 223.12 | 0.4789 | -1020.6 | -780.3 | |
| 0.00 | 2.73 | 0.00 | 1.51 | -18.33 | 100.27 | 19.69 | 225.33 | 0.4516 | -711.0 | -682.1 | |
| 0.00 | 1.19 | 0.00 | 0.67 | -20.49 | 100.54 | 19.96 | 222.28 | 0.4774 | -804.0 | -631.4 | |
| 0.00 | 0.85 | 0.00 | 0.47 | -18.49 | 100.09 | 19.51 | 224.81 | 0.4512 | -796.0 | -664.4 | |
| 0.00 | 0.68 | 0.00 | 0.39 | -23.95 | 100.86 | 20.28 | 217.86 | 0.5182 | -477.0 | -438.1 | |
| 0.00 | 1.71 | 0.00 | 0.96 | -21.06 | 99.48 | 18.90 | 219.94 | 0.4728 | 648.0 | 389.0 | |
| 0.00 | 1.71 | 0.00 | 0.95 | -20.34 | 98.65 | 18.07 | 219.80 | 0.4564 | -901.0 | -688.7 | |
| 0.00 | 2.47 | 0.00 | 1.39 | -22.08 | 98.34 | 17.76 | 216.83 | 0.4736 | -912.0 | -767.4 | |
| 0.00 | 0.34 | 0.00 | 0.19 | -18.30 | 96.89 | 16.31 | 220.19 | 0.4150 | -577.0 | -635.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
