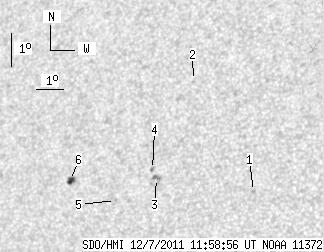

SDO HMI 2011-12-07 11:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.67 | 14.58 | 2.39 | 9.23 | 8.75 | 42.98 | -37.60 | 75.94 | 0.6236 | 173.7 | -217.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-07 11:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.11 | 0.00 | 0.66 | 8.25 | 47.51 | -33.07 | 75.26 | 0.5606 | 820.0 | 639.0 | |
| 0.00 | 0.85 | 0.00 | 0.53 | 11.58 | 44.92 | -35.66 | 70.76 | 0.6071 | -501.0 | -392.5 | |
| 0.00 | 5.20 | 0.00 | 3.25 | 8.64 | 43.93 | -36.65 | 75.85 | 0.6109 | -753.0 | -613.7 | |
| 0.00 | 1.53 | 0.00 | 0.96 | 8.91 | 43.75 | -36.83 | 75.48 | 0.6140 | -606.0 | -525.7 | |
| 0.00 | 0.94 | 0.00 | 0.60 | 7.98 | 42.46 | -38.12 | 77.33 | 0.6289 | 644.0 | 551.7 | |
| 3.67 | 4.95 | 2.39 | 3.23 | 8.58 | 40.66 | -39.92 | 76.89 | 0.6539 | 702.8 | 561.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
