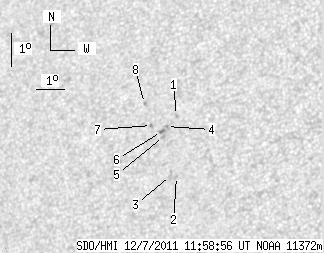

SDO HMI 2011-12-07 11:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 14.16 | 0.00 | 8.41 | 12.17 | 49.14 | -31.44 | 67.70 | 0.5534 | 735.5 | 585.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-07 11:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.28 | 0.00 | 0.76 | 12.97 | 49.44 | -31.14 | 66.13 | 0.5532 | 677.0 | 531.9 | |
| 0.00 | 1.62 | 0.00 | 0.95 | 11.13 | 49.68 | -30.90 | 69.19 | 0.5412 | 812.0 | 531.6 | |
| 0.00 | 3.07 | 0.00 | 1.81 | 11.16 | 49.46 | -31.12 | 69.25 | 0.5443 | 708.0 | 450.1 | |
| 0.00 | 1.45 | 0.00 | 0.86 | 12.64 | 49.13 | -31.45 | 66.88 | 0.5557 | 791.0 | 689.6 | |
| 0.00 | 2.05 | 0.00 | 1.22 | 12.34 | 49.07 | -31.51 | 67.44 | 0.5551 | 702.0 | 587.8 | |
| 0.00 | 2.22 | 0.00 | 1.32 | 12.49 | 48.97 | -31.61 | 67.23 | 0.5571 | 838.0 | 756.2 | |
| 0.00 | 1.45 | 0.00 | 0.87 | 12.67 | 48.59 | -31.99 | 67.15 | 0.5631 | 716.0 | 610.8 | |
| 0.00 | 1.02 | 0.00 | 0.62 | 13.34 | 48.24 | -32.34 | 66.23 | 0.5709 | 640.0 | 583.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
