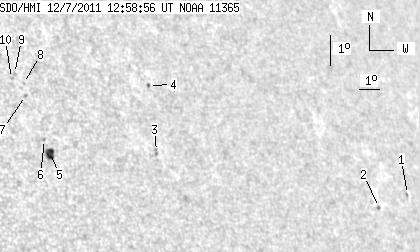

SDO HMI 2011-12-07 12:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.99 | 18.65 | 4.88 | 13.97 | 18.68 | 125.34 | 45.31 | 295.70 | 0.7452 | 387.8 | 62.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-07 12:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 1.36 | 17.03 | 138.68 | 58.65 | 289.68 | 0.8692 | -365.0 | -302.2 | |
| 0.00 | 1.19 | 0.00 | 1.13 | 16.63 | 136.86 | 56.82 | 289.58 | 0.8533 | 461.0 | 348.9 | |
| 0.00 | 1.96 | 0.00 | 1.48 | 18.37 | 126.36 | 46.33 | 294.58 | 0.7572 | -624.0 | -539.6 | |
| 0.00 | 1.36 | 0.00 | 1.05 | 20.44 | 126.77 | 46.73 | 297.02 | 0.7683 | -567.0 | -489.7 | |
| 6.99 | 7.59 | 4.88 | 5.30 | 18.31 | 121.73 | 41.70 | 296.35 | 0.7072 | 788.8 | 600.6 | |
| 0.00 | 1.19 | 0.00 | 0.83 | 18.74 | 121.61 | 41.58 | 296.99 | 0.7077 | 623.0 | 496.1 | |
| 0.00 | 1.36 | 0.00 | 0.96 | 20.12 | 121.25 | 41.22 | 298.99 | 0.7097 | 692.0 | 497.3 | |
| 0.00 | 0.77 | 0.00 | 0.54 | 20.50 | 121.29 | 41.26 | 299.46 | 0.7118 | 265.0 | 257.6 | |
| 0.00 | 0.85 | 0.00 | 0.60 | 20.82 | 121.02 | 40.98 | 300.01 | 0.7103 | 476.0 | 403.9 | |
| 0.00 | 1.02 | 0.00 | 0.72 | 20.66 | 120.84 | 40.81 | 299.89 | 0.7077 | 573.0 | 523.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
