SDO HMI 2011-12-07 12:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.41 | 35.39 | 7.92 | 19.43 | -24.83 | 74.55 | -5.49 | 168.44 | 0.4319 | -947.1 | -718.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-07 12:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

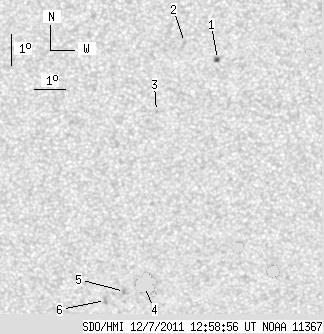

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.79 | 2.56 | 0.94 | 1.34 | -18.48 | 77.00 | -3.04 | 171.04 | 0.3240 | -943.6 | -854.8 | |
| 0.00 | 1.28 | 0.00 | 0.67 | -17.95 | 75.98 | -4.05 | 167.76 | 0.3185 | -948.0 | -737.5 | |
| 0.00 | 1.11 | 0.00 | 0.59 | -20.11 | 75.04 | -4.99 | 166.70 | 0.3565 | -799.0 | -614.0 | |
| 12.62 | 25.58 | 6.98 | 14.13 | -25.73 | 74.44 | -5.60 | 168.60 | 0.4463 | -1007.4 | -735.2 | |
| 0.00 | 2.47 | 0.00 | 1.37 | -25.89 | 73.77 | -6.26 | 167.38 | 0.4510 | -897.0 | -724.4 | |
| 0.00 | 2.39 | 0.00 | 1.33 | -26.19 | 73.12 | -6.91 | 166.30 | 0.4578 | -727.0 | -616.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
