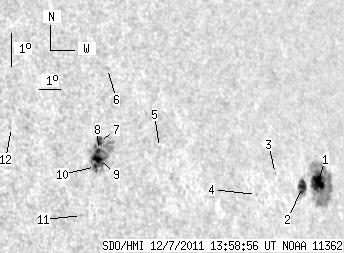

SDO HMI 2011-12-07 13:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.91 | 135.54 | 25.68 | 116.68 | 7.46 | 133.75 | 54.27 | 279.19 | 0.8147 | -214.3 | -9.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-07 13:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.17 | 71.43 | 10.43 | 67.00 | 7.18 | 137.18 | 57.69 | 278.42 | 0.8498 | -745.0 | -95.6 | |
| 8.35 | 12.96 | 7.62 | 11.80 | 7.07 | 136.32 | 56.84 | 278.36 | 0.8418 | -703.1 | -540.9 | |
| 0.00 | 0.85 | 0.00 | 0.75 | 7.45 | 134.94 | 55.46 | 278.96 | 0.8290 | -420.0 | -316.3 | |
| 0.00 | 0.94 | 0.00 | 0.80 | 6.83 | 133.84 | 54.36 | 278.31 | 0.8177 | -571.0 | -537.4 | |
| 0.00 | 1.02 | 0.00 | 0.79 | 8.24 | 129.35 | 49.86 | 280.64 | 0.7722 | -536.0 | -459.8 | |
| 0.00 | 1.28 | 0.00 | 0.96 | 10.60 | 127.42 | 47.94 | 284.07 | 0.7546 | 669.0 | 541.6 | |
| 2.64 | 45.95 | 1.95 | 33.80 | 8.42 | 126.66 | 47.18 | 281.32 | 0.7423 | 621.5 | 263.5 | |
| 1.79 | -7.00 | 1.31 | -7.00 | 8.15 | 126.57 | 47.09 | 280.97 | 0.7409 | 718.0 | 999999 | |
| 4.94 | -7.00 | 3.62 | -7.00 | 7.91 | 126.49 | 47.01 | 280.66 | 0.7396 | 855.8 | 999999 | |
| 1.02 | -7.00 | 0.75 | -7.00 | 7.67 | 126.37 | 46.89 | 280.36 | 0.7378 | 892.8 | 999999 | |
| 0.00 | 0.68 | 0.00 | 0.49 | 6.21 | 125.57 | 46.09 | 278.50 | 0.7265 | 586.0 | 476.8 | |
| 0.00 | 0.43 | 0.00 | 0.29 | 8.84 | 122.97 | 43.49 | 282.63 | 0.6992 | 690.0 | 666.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
