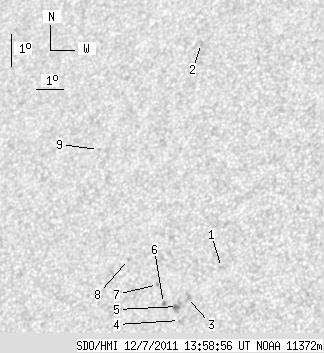

SDO HMI 2011-12-07 13:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 19.69 | 0.00 | 11.70 | 14.07 | 48.83 | -30.65 | 64.08 | 0.5532 | 713.9 | 618.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-07 13:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.05 | 0.00 | 1.19 | 13.79 | 50.48 | -29.00 | 63.30 | 0.5292 | 697.0 | 546.8 | |
| 0.00 | 2.13 | 0.00 | 1.32 | 20.72 | 48.52 | -30.97 | 53.79 | 0.5987 | 664.0 | 557.6 | |
| 0.00 | 4.18 | 0.00 | 2.45 | 12.88 | 49.42 | -30.06 | 65.62 | 0.5383 | 657.0 | 569.7 | |
| 0.00 | 1.02 | 0.00 | 0.60 | 12.18 | 49.23 | -30.25 | 66.96 | 0.5373 | 696.0 | 680.0 | |
| 0.00 | 5.11 | 0.00 | 3.01 | 12.60 | 49.10 | -30.38 | 66.29 | 0.5412 | 1030.0 | 742.9 | |
| 0.00 | 1.96 | 0.00 | 1.16 | 12.69 | 48.60 | -30.88 | 66.45 | 0.5484 | 683.0 | 613.0 | |
| 0.00 | 0.94 | 0.00 | 0.56 | 13.27 | 48.31 | -31.18 | 65.65 | 0.5553 | 715.0 | 650.8 | |
| 0.00 | 1.28 | 0.00 | 0.77 | 14.03 | 47.15 | -32.33 | 65.09 | 0.5743 | 658.0 | 551.6 | |
| 0.00 | 1.02 | 0.00 | 0.64 | 17.40 | 45.43 | -34.06 | 60.88 | 0.6140 | 625.0 | 482.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
