SDO HMI 2011-12-07 14:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.43 | 35.71 | 10.65 | 19.53 | -24.53 | 74.69 | -4.24 | 170.93 | 0.4234 | -978.6 | -709.3 | |
|
previous
or next observation for the same group /

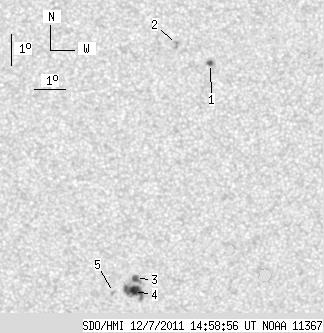

back to the solar disc SDO HMI 2011-12-07 14:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.39 | 2.64 | 1.25 | 1.38 | -18.51 | 77.02 | -1.91 | 174.34 | 0.3221 | -968.0 | -692.0 | |
| 0.00 | 3.24 | 0.00 | 1.69 | -17.92 | 75.97 | -2.96 | 170.97 | 0.3146 | -1006.0 | -769.6 | |
| 3.49 | 28.13 | 1.92 | 15.52 | -25.37 | 74.47 | -4.46 | 170.72 | 0.4375 | -994.7 | -683.4 | |
| 13.55 | -3.00 | 7.48 | -3.00 | -25.79 | 74.39 | -4.54 | 170.72 | 0.4443 | -976.7 | 999999 | |
| 0.00 | 1.70 | 0.00 | 0.94 | -25.83 | 73.73 | -5.20 | 169.42 | 0.4466 | -947.0 | -772.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
