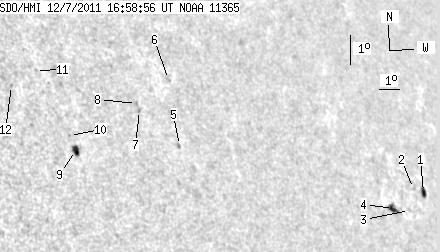

SDO HMI 2011-12-07 16:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.70 | 28.35 | 11.71 | 25.23 | 17.73 | 131.67 | 53.84 | 291.97 | 0.8248 | 124.8 | -97.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-07 16:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.41 | 5.28 | 3.66 | 5.67 | 16.93 | 139.02 | 61.19 | 289.11 | 0.8890 | -217.1 | -143.4 | |
| 0.00 | 1.02 | 0.00 | 1.08 | 17.05 | 138.44 | 60.61 | 289.35 | 0.8848 | -239.0 | -225.3 | |
| 0.00 | 1.02 | 0.00 | 1.06 | 16.37 | 137.83 | 60.00 | 288.69 | 0.8792 | -265.0 | -193.8 | |
| 4.77 | 6.56 | 4.79 | 6.58 | 16.44 | 136.88 | 59.05 | 288.93 | 0.8717 | 426.4 | 307.8 | |
| 0.00 | 1.79 | 0.00 | 1.41 | 18.39 | 126.42 | 48.59 | 293.84 | 0.7804 | -582.0 | -518.6 | |
| 0.00 | 1.53 | 0.00 | 1.23 | 20.46 | 126.73 | 48.90 | 296.27 | 0.7897 | -272.0 | -284.6 | |
| 0.00 | 1.79 | 0.00 | 1.38 | 19.48 | 124.97 | 47.14 | 295.70 | 0.7692 | -706.0 | -551.9 | |
| 0.00 | 1.36 | 0.00 | 1.05 | 19.70 | 124.91 | 47.08 | 295.99 | 0.7693 | -571.0 | -508.8 | |
| 4.52 | 5.28 | 3.26 | 3.82 | 18.23 | 121.67 | 43.84 | 295.36 | 0.7304 | 742.9 | 624.1 | |
| 0.00 | 0.68 | 0.00 | 0.49 | 18.70 | 121.56 | 43.73 | 296.01 | 0.7309 | 548.0 | 494.5 | |
| 0.00 | 1.02 | 0.00 | 0.74 | 20.74 | 120.78 | 42.95 | 298.99 | 0.7308 | 485.0 | 501.8 | |
| 0.00 | 1.02 | 0.00 | 0.72 | 20.27 | 119.59 | 41.76 | 298.93 | 0.7162 | 517.0 | 390.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
